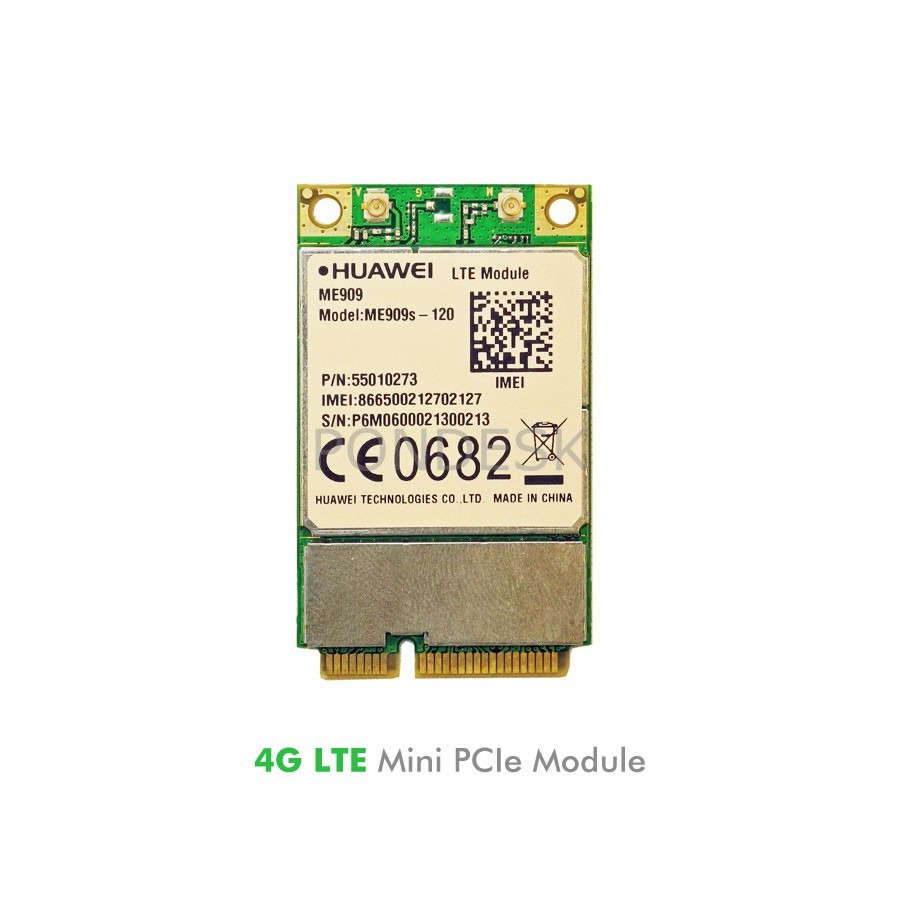

Huawei ME909s-120 Mini PCIe 4G LTE WWAN Module
Huawei ME909s-120 Mini PCIe 4G LTE WWAN Module

Huawei ME909s-120 Mini PCIe 4G LTE WWAN Module

In Stock

UK Free Shipping UK Free Shipping over £249

USD
  • GBP
  • USD
  • EUR
$78.69 $65.29 exc. VAT Note: VAT will be charged for UK & EU Countries at checkout. For Zero VAT (for EU buyers), please provide a VAT number at checkout. save 18.19%

Add to Wishlist

Compare

Dispatch Time:

Next 2 to 3 Working Days

Product Code: NWEL-004

ME909s-120 is the first LTE cat4 module based on Hi-Silicon chipset. Which is high-quality designed LTE module in small size and Huawei standard LGA form factor, especially for industrial-grade M2M applications such as vehicle telematics, tracking, mobile payment, industrial router, safety monitor and industrial PDAs.



ME909s-120 supports 150Mbps downlink data rate, including enhanced features like FOTA, USSD and Huawei enhanced AT commands.


ME909s-120(B1/B2/B3/B4/B5/B7/B8/B20) supports EMEA region, and has two different form factors: LGA and Mini PCIe form factor.


All Huawei modules comply with the RoHS directive and Regional certification.

Antenna Wire & Antennas are optional.


Specifications:

Form Factor Mini-PCIe
Bands ME909s-120 Mini PCIe
LTE (FDD): B1,B2,B3,B4,B5,B7,B8,B20
DC-HSPA+/HSPA+/HSPA/UMTS: B1,B2,B5,B8
EDGE/GPRS/GSM: 850/900/1800/1900 MHz
Data Transfer Rate DC-HSPA+ : Downlink:42 Mbps, Uplink: 5.76 Mbps
LTE FDD: Downlink:150 Mbps, Uplink: 50 Mbps @ Bandwidth 20M (CAT4)
Interface Mini PCIe interface
Antenna interface
USB 2.0 High speed
PCM Voice
SIM Card
LED
Power supply
Reset
Power Supply 3.2 V to 4.2 V (3.8 V recommended)
Temp Range -40℃ to 85℃
Voice PCM Voice
DTMF
Special Features CDC-ECM
FOTA
Firmware Update via USB
Embedded UDP/TCP/FTP(s)/HTTP(s) stack
High-speed UART
CMUX
Sleep mode
Operating System Linux, Android, Windows 8/10
Approvals CE
GCF
RoHS & WEEE Compliant
Size 30.4 x 51 x 3.52 mm (H x W x D)
