10th Gen. Intel® i7-10510U 2 LAN 3 Display Fanless Mini PC

In Stock       1 Year Warranty       EU Free Shipping

PRODUCT CODE: MNHO-079


10th Gen. Intel® i7-10510U 2 LAN 3 Display Fanless Mini PC - MNHO-079 | Image10th Generation comet lake Intel® Core™ i7-10510U embedded mini PC (up to 4.90 GHz). Provides excellent security protection with Intel® AES-NI for secure and fast data encryption and decryption and Intel® SGX to create hardware enforced trusted execution protection for applications’ sensitive routines and data.

Equipped with dual Gigabit RJ45 Ethernet ports (supports network wake-up/PXE) and three displays; including dual HDMI ports (supports 4K HD 4096*2304 @ 60Hz) and HD VGA display port featured by integrated Intel® UHD graphics.

Support wireless networks 802.11 b/g/n/ac Wi-Fi and WWAN 4G LTE (optional). Support up to 32GB SODIMM DDR4 non-ECC memory and three storage drives including mSATA SSD, 2.5" SATA SSD/HDD and hi-speed M.2 2280 NVMe SSD as well as TF card storage. Highly reliable universal performance and energy efficient. Compatible with Windows 10, Linux and Android etc.

Completely Fanless aluminium alloy compact size durable dustproof with perfect heat dissipation to cool the internals and increase the work efficiency. high-end computing ability for demanding applications.

A stunning sleek design and small size makes it perfect to mount behind your monitor or TV with VESA mount. Takes almost no space of your desk, make your desk more clear and smart. Perfect for home, office, gateways, educational institutions, media center, displays, stations and training applications etc.

Features:

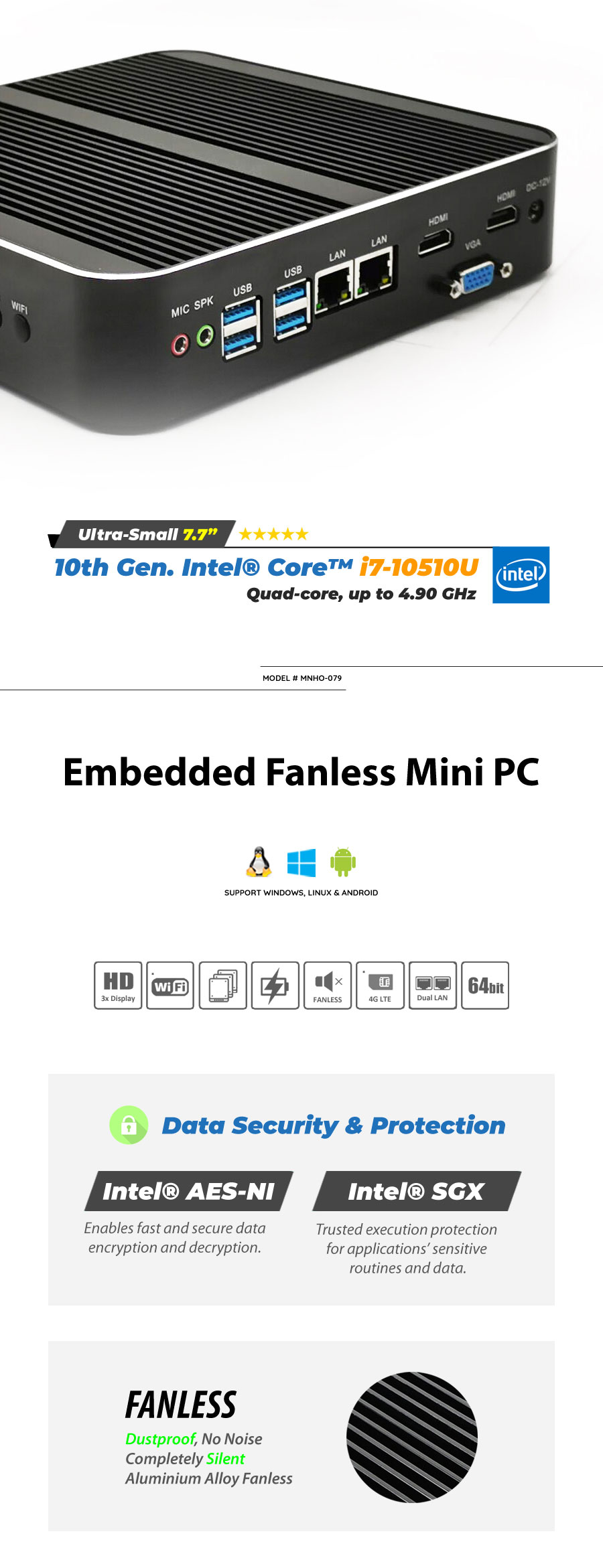

Completely Fanless Aluminium Alloy, Silent Mini PC
Intel® Core™ i7-10510U Quad-Core Processor
8 Threads, 8 MB Intel® Smart Cache, up to 4.90 GHz

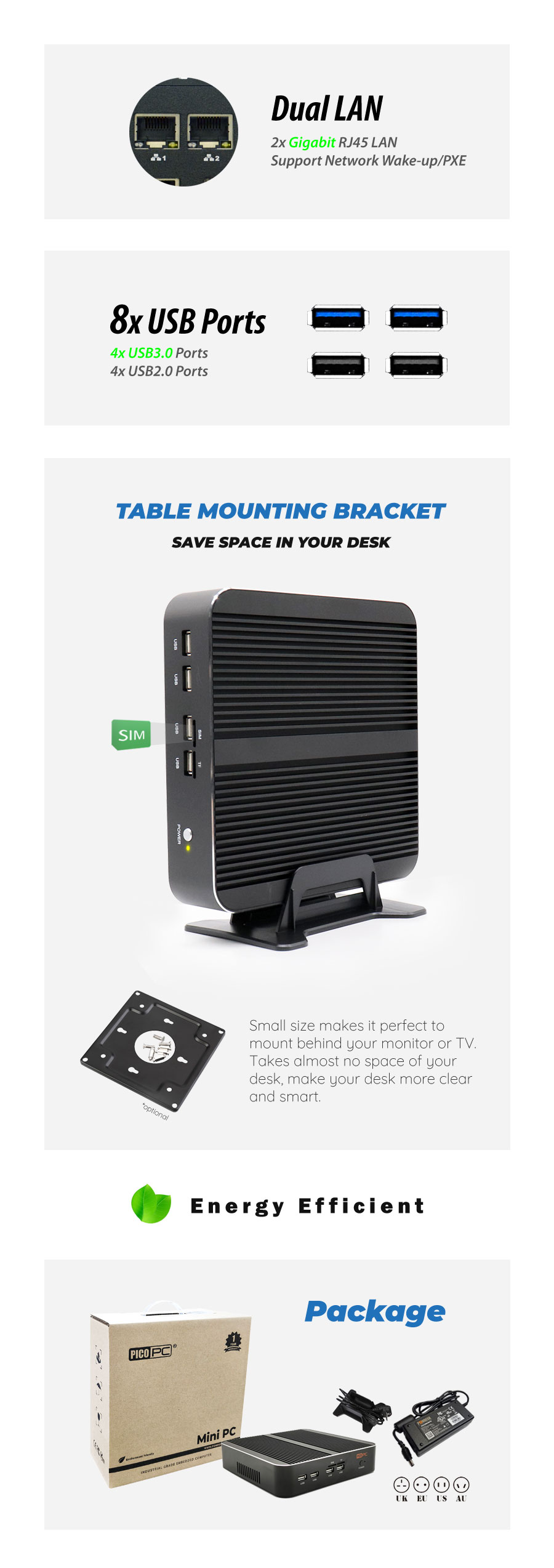

Dual Gigabit RJ45 Ethernet
Three Independent HD Display (Support 4K)
Dual HDMI and VGA Ports (Intel® UHD Graphics)
Support 802.11 AC WiFi & Bluetooth (optional)
Support 3G/4G LTE (optional)

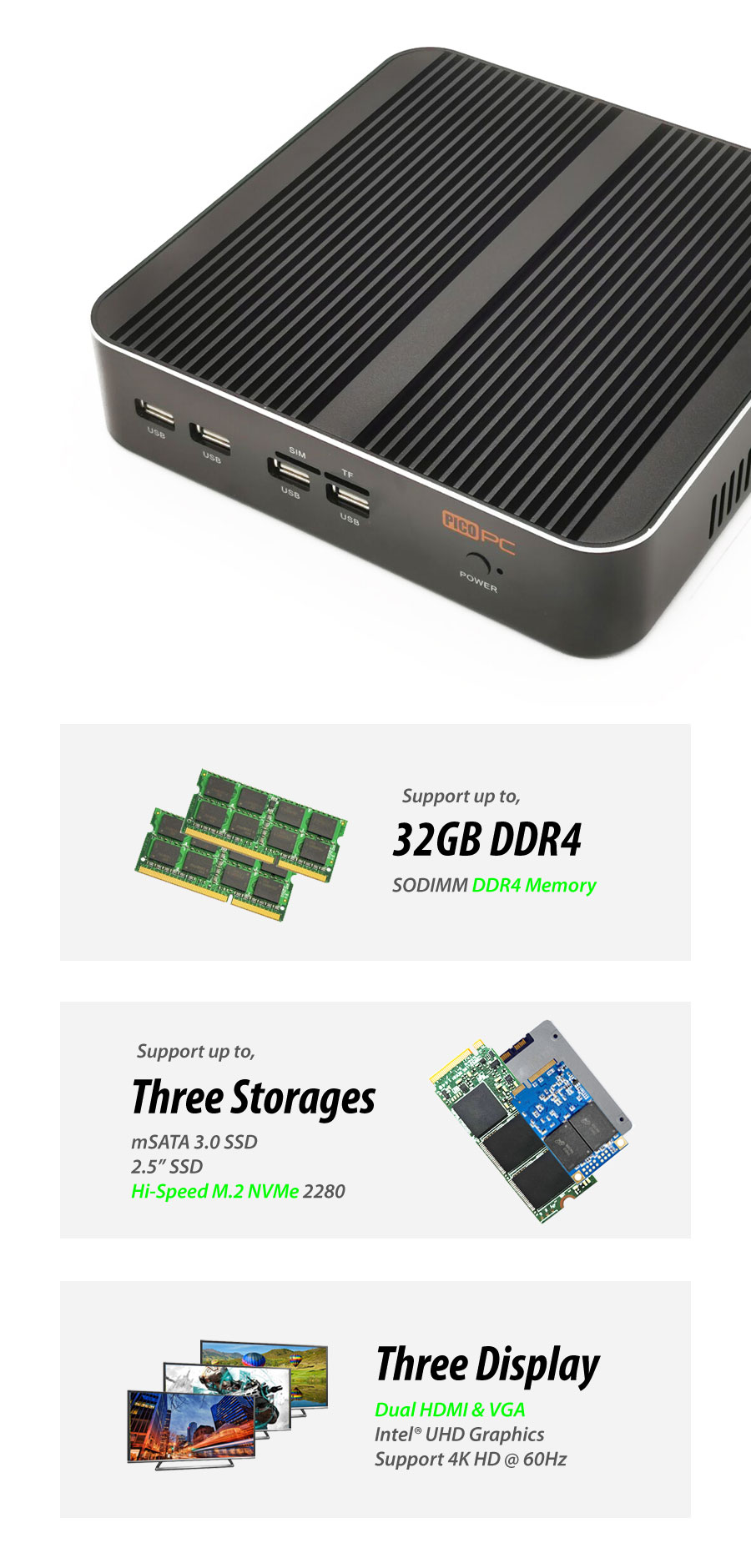

Support up to 32GB SODIMM DDR4 Memory
Support Three Storage (mSATA SSD, 2.5" SATA SSD/HDD, M.2 2280 NVMe)
Eight USB Ports, SIM & TF Card Slot
ALC662 6-Channel HD Audio
Intel® SGX  & Intel® AES-NI Data Protection
Energy Efficient, Low Power Consumption
Support Windows 10, Android & Linux etc.
Perfect for Home, Office, Educational Institutions etc.

Specifications:

System

Model

PICO PC MNHO-079

Part Number (P/N)

MO79I7105UMP2L

Processor

CPU

10th Gen. Intel® Core™ i7-10510U

Frequency

up to 4.90 GHz

TDP

15W

# of Cores

4

# of Threads

8

Cache

8 MB Intel® Smart Cache

Memory

Size

Support up to 32GB (optional)

Type

SODIMM DDR4 (non-ECC)

Slot

2

Storage

mSATA

Support 1 x mSATA SSD (optional)

M.2 NVMe

Support 1 x M.2 2280 NVMe (optional)

2.5" SATA

Support 1 x 2.5" SATA SSD/HDD (optional)

Graphics

Ports

Three Display (Dual HDMI and VGA)

Features

Intel® UHD Graphics

Support 4K HD (4096*2304 @ 60Hz)

Intel® Quick Sync Video

Intel® Clear Video HD Technology

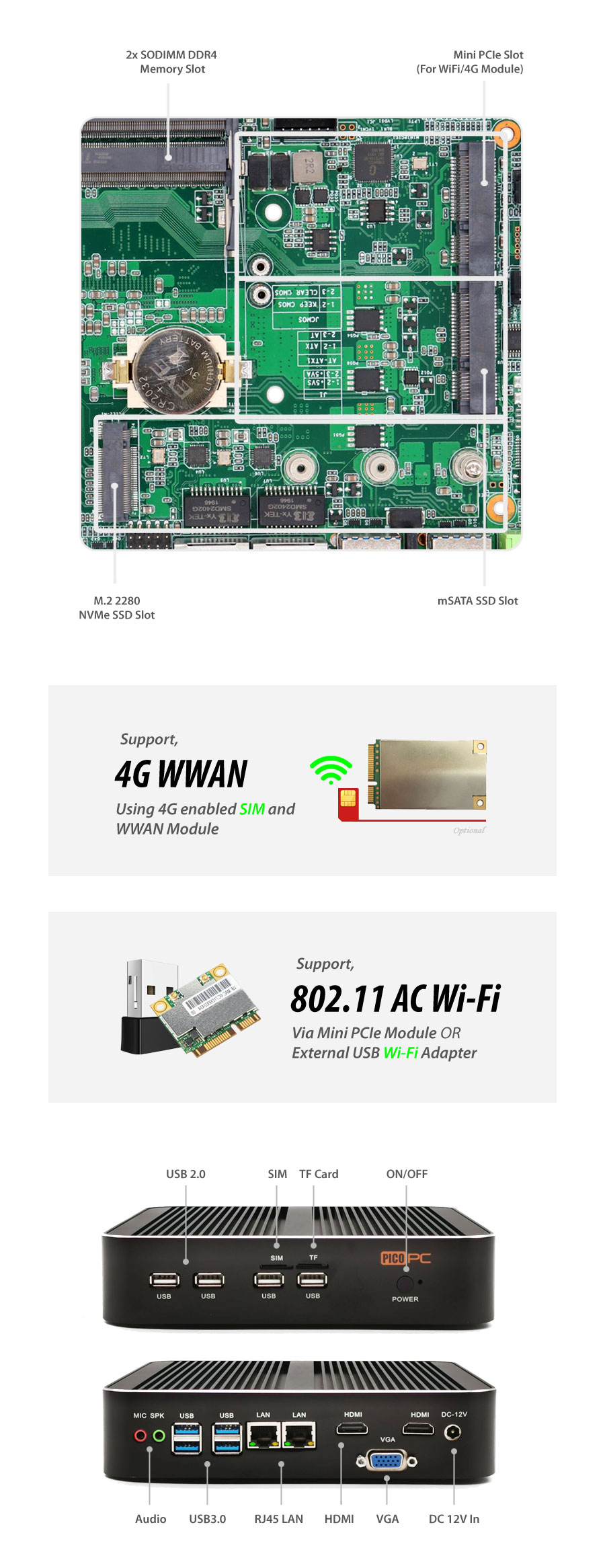

Expansion Slots

mSATA

1 x mSATA (For mSATA SSD)

Mini PCIe

1 x Full Size mini PCIe (For WiFi/4G Module)

M.2

1 x M.2 2280 NVMe (For M.2 NVMe SSD)

CPU Advanced Technologies

Intel® Speed Shift Technology

Yes

Intel® Thermal Velocity Boost

Yes

Intel® Hyper-Threading Technology

Yes

Intel® Virtualization Technology

Yes

Enhanced Intel SpeedStep® Technology

Yes

Intel® Identity Protection Technology

Yes

Intel® Smart Response Technology

Yes

Intel® AES-NI

Yes

Intel® SGX

Yes

I/O Interfaces

LAN

2 x Intal RTL8111 RJ45 Gigabit LAN (Support Network Wake-up/PXE)

Display

2 x HDMI

1 x VGA

USB

4 x USB 3.0

4 x USB 2.0

SIM

1 x SIM Slot

TF

1 x TF Card Slot

DC-In

1 x DC 12V In (5.5*2.5mm Socket)

Audio

1 x Audio In & Out (ALC662 6-Channel HD)

Antenna

2 x Antenna Ports

Switch

1 x Power Switch (ON/OFF)

LED Indicator

1 x System LED

Power & Working Environment

Power Type

External Power Adapter

Power Adapter Input

AC 100-240V ~ 50-60Hz

Power Adapter Output

DC 12V 5A

System Power Input

DC 12V

Operating Temperature

-10°C ~ 40°C

Storage Temperature

-20°C ~ 70°C

Relative Humidity

5% - 95% Relative Humidity (non-condensing)

Vibration

0.5g rms/5-500HZ/random/operating

OS

Windows 10

Support

Linux

Support

Android

Support

Compliance

Approvals

CE, FCC & RoHS

Others

BIOS

64Mb Flash ROM

Watchdog

Support (L256 Segments, 0~255 Sec.)

Cooling

Aluminium Alloy FANLESS, Silent

Size

197mm x 197mm x 40mm (L*W*H)

Package

1 x Mini PC

1 x Power Adapter

1 x Power Cord

1 x Desktop Mount Bracket
