Unlock enterprise‑grade power in a compact box with the 14th Gen Intel i3 NGHC Hypervisor Mini Server/Workstation with 5G/Wifi6 ECC & RAID – the perfect engine for your next virtualization or edge‑computing project.

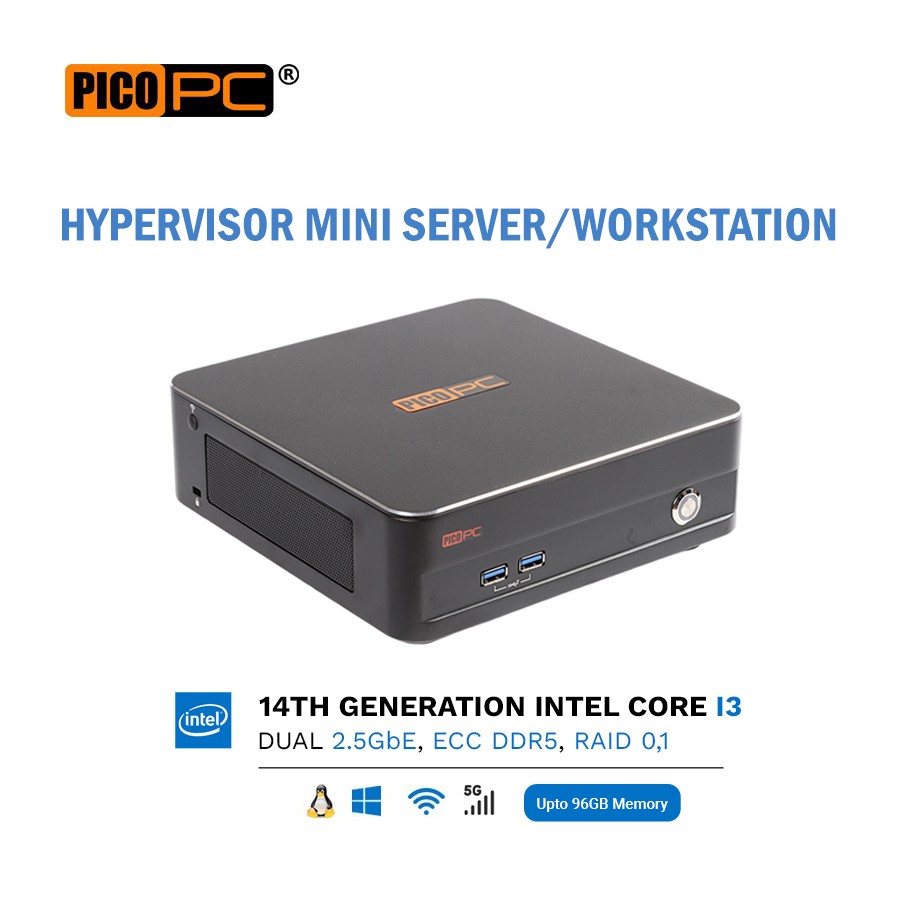

14th Gen Intel i3 NGHC Hypervisor Mini Server/Workstation with 5G/Wifi6 ECC & RAID
Built on Intel® Raptor Lake i3, this mini server delivers up to 4.40 GHz across four cores, paired with up to 96 GB of ECC‑protected DDR5 memory. Dual 2.5 GbE LAN ports and integrated Wi‑Fi 6E keep your data flowing fast and reliably, while three 4K display outputs let you monitor workloads on multiple screens.
Security is baked in with Intel® AES‑NI, a discrete TPM 2.0, and a Kensington lock slot, giving you hardware‑level protection against firmware attacks and ransomware. The aluminum alloy chassis and copper heat‑pipe cooling keep the system cool in tight spaces, and the VESA‑mount design lets you mount it on a wall or behind a monitor.
Benefits
- High‑performance computing in a 200 mm × 200 mm footprint.
- ECC‑enabled DDR5 memory ensures data integrity for critical workloads.
- Dual 2.5 GbE and Wi‑Fi 6E provide fast, redundant networking options.
- Built‑in TPM 2.0 and Kensington lock protect against physical and firmware threats.
Uses of the product
- Virtualization host for Proxmox VE, VMware ESXi, or Hyper‑V.
- Edge computing node for 5G/4G WWAN‑enabled remote sites.
- High‑speed network server or LAN/WAN router in small‑to‑medium businesses.
- Compact workstation for multi‑display CAD, video editing, or data analysis.
Features
- 14th Gen Intel® Core™ i3 processor with Intel® W680 chipset and up to 4.40 GHz boost.
- Support for three storage drives: dual M.2 NVMe (PCIe 4.0 2280 & PCIe 3.0 2242) with RAID 0/1 and one 2.5″ SATA 3.0 SSD.
- 10 USB ports (six Type‑A up to 10 Gbps, one Type‑C 10 Gbps, one Type‑C 20 Gbps) for rapid data transfer.
- Integrated Intel® UHD 770 graphics with three 4K display ports (DP++ 1.4b and dual HDMI 2.0).
Specifications
| System |
Model |
PICOPC® NGHC-243 |
| Processor |
CPU |
14th Gen. Intel® Core™ i3 |
| Processor Frequency |
up to 4.40 GHz |
| # of Cores |
4 |
| Chipset |
Chipset |
Intel® W680 |
| Memory |
Slots |
2 x SODIMM DDR5 |
| Capacity |
Support up to 96GB |
| ECC |
Support |
| Storage |
M.2 NVMe |
Support 1 x M.2 PCIe 4.0 2280 NVMe SSD |
| Support 1 x M.2 PCIe 3.0 2242 NVMe SSD |
| Support RAID (0,1) |
| 2.5" SSD |
Support 1 x 2.5" SATA 3.0 SSD |
| Expansion Slot |
4G/5G |
1 x M.2 3042/3052 B-Key |
| Wireless Connectivity |
Wi-Fi |
Intel® Wi-Fi 6E |
| (Embedded) |
Bluetooth |
5.3 |
| I/O Interfaces |
LAN |
1 x RJ45 2.5GbE Intel® i226-V |
| 1 x RJ45 2.5GbE Intel® i226-LM |
| Support Wake-On-LAN/PXE |
| Display |
1 x DP++ 1.4b |
| 2 x HDMI 2.0 |
| Intel® UHD Graphics 730 |
| USB |
6 x USB3.2 Gen 2x1 Type-A (10Gbps) |
| 1 x USB3.2 Gen 2x1 Type-C (10Gbps) |
| 1 x USB3.2 Gen 2x2 Type-C (20Gbps) |
| 2 x USB2.0 (480Mbps) |
| Audio |
1 x Audio-In, 1 x Audio-Out |
| CPU Advanced Technologies |
Intel® Speed Shift Technology |
Yes |
| Enhanced Intel SpeedStep® Technology |
Yes |
| Intel® Turbo Boost Technology |
Yes |
| Intel® Hyper-Threading Technology |
Yes |
| Intel® Virtualization Technology (VT-x) |
Yes |
| Intel® AES New Instructions |
Yes |
| Intel® Virtualization Technology |
Yes |
| OS |
Windows |
Support Windows 10/11 |
| Windows Server |
Support Windows Server 2019/2022 |
| Linux |
Support Ubuntu Desktop/Server, Debian |
| Red Hat Linux® 9.3 Enterprise WS |
| Virtualization |
Support Proxmox VE, VMware ESXi |
| Others |
System Power Input |
DC 12V |
| Power Adapter |
DC 12V, 15A |
| Kensington Lock |
Yes |
| Cooling system |
Copper Heatpipe Based Powerful CPU Cooler |
| Compliance |
CE, FCC, RoHS, UKCA & WEEE |
| Dimensions (LxWxH) |
200mm x 200mm x 63 mm |
| Package |
1 x Mini PC |
| 1 x Power Adapter |
| 1 x Power Cord |
| 1 x SATA Cable |
| 1 x VESA mount |
