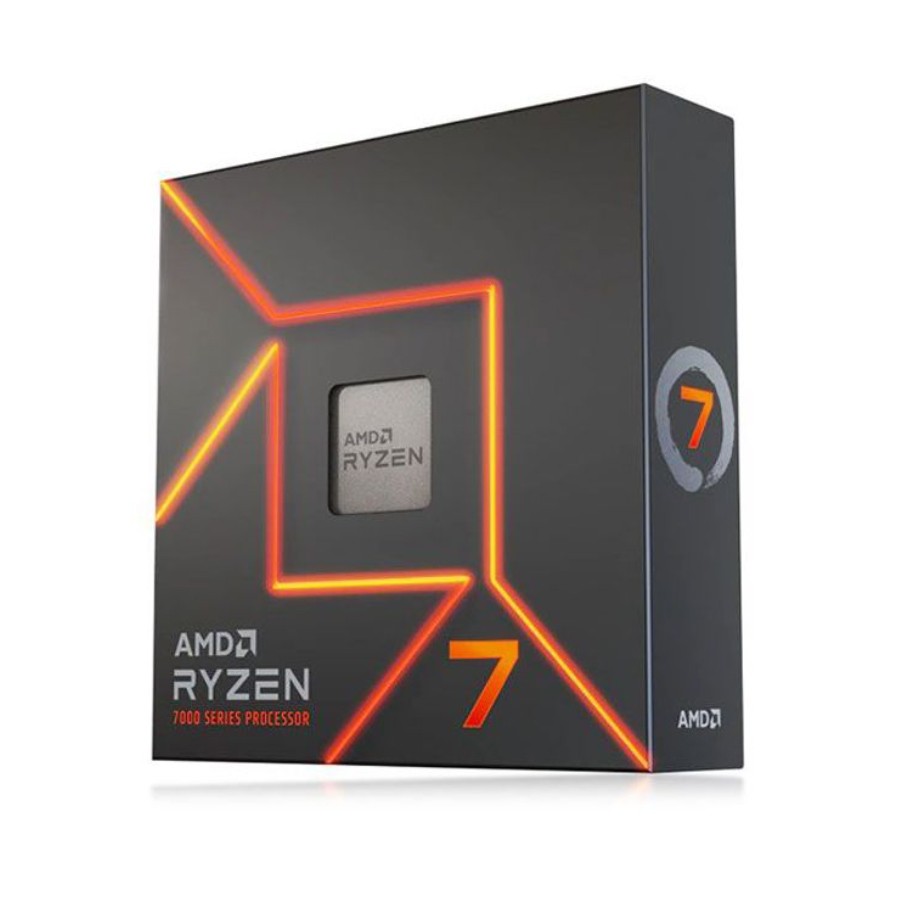

The AMD Ryzen™ 7 7700X is a high-end desktop processor designed for enthusiasts, gamers, and content creators who demand top-tier performance. Built on the advanced Zen 4 architecture and utilizing the AM5 socket, this processor features eight cores and sixteen threads, delivering exceptional multi-threaded performance and responsiveness for a wide range of demanding applications. It operates at a base clock speed of 4.5 GHz and can boost up to an impressive 5.4 GHz, ensuring rapid processing speeds and smooth performance for both single-threaded and multi-threaded workloads.
The Ryzen™ 7 7700X supports PCIe 5.0, which provides substantial improvements in data transfer rates and future-proofs the system for the next generation of GPUs and high-speed storage solutions. Additionally, it supports DDR5 memory, offering significantly higher bandwidth and improved efficiency compared to DDR4, which enhances overall system performance and multitasking capabilities. With a Thermal Design Power (TDP) of 105 watts, it offers a balance between powerful performance and energy efficiency, making it suitable for a variety of desktop configurations.
Advanced features such as AMD Precision Boost 2 dynamically adjust the processor's clock speeds to optimize performance based on thermal and power conditions, while Precision Boost Overdrive allows for automatic overclocking when additional thermal headroom is available, providing users with the ability to push the processor's performance even further. It also supports Curve Optimizer, a feature that allows for fine-tuning of voltage settings for each individual core, optimizing performance and power consumption.
Additionally, it includes AMD EXPO™ (Extended Profiles for Overclocking) Memory Overclocking Technology, which simplifies the process of overclocking memory modules with predefined profiles, enhancing overall system performance. Supported by the AMD Ryzen™ Master utility, users have comprehensive control over the processor's settings, including the ability to monitor and adjust clock speeds, voltages, and memory timings for customized performance profiles.
Features:
AMD Ryzen™ 7 7700X AM5 Processor
8 CPU Cores and 16 Threads
Maximum Boost Clock up to 5.4 GHz and Base Clock 4.5 GHz
PCIe® 5.0 Interface
Supports DDR5 Memory Type
Supports 2 Memory Channels
Default TDP is 105W
AMD Radeon™ Graphics Model
2 x Graphics Core Count
2200 MHz Graphics Frequency
Maximum Operating Temperature is 95°C
4 x Native USB 3.2 Gen 2 (10Gbps) Ports support
1 x Native USB 2.0 (480Mbps) Ports support
AMD EXPO™ Memory Overclocking Technology, Precision Boost Overdrive, Curve Optimizer Voltage Offsets, and AMD Ryzen™ Master Support are supported
Specifications:
Specifications | Name | AMD Ryzen™ 7 7700X |
Family | Ryzen |
Series | Ryzen 7000 Series |
Product ID | 100-100000591WOF |
Form factor | Desktops, Boxed Processor |
Architecture | Zen 4 |
CPU Cores | 8 |
Threads | 16 |
Max. Boost Clock | Up to 5.4 GHz |
Base Clock | 4.5 GHz |
L1 Cache | 512 KB |
L2 Cache | 8 MB |
L3 Cache | 32 MB |
Default TDP | 105W |
Processor Technology (CPU Cores) | TSMC 5nm FinFET |
Processor Technology for I/O Die | TSMC 6nm FinFET |
CPU Compute Die (CCD) Size | 71mm² |
I/O Die (IOD) Size | 122mm² |
CPU Socket | AM5 |
Supporting Chipsets | A620 , X670E , X670 , B650E , B650 |
CPU Boost Technology | Precision Boost 2 |
Instruction Set | x86-64 |
Supported Extensions | AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64 |
Thermal Solution | Premium air cooler recommended for optimal performance |
Max.Operating Temperature | 95°C |
Launch Date | 27/09/2022 |
OS Support | Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit |
Connectivity | PCI Express Version | PCIe® 5.0 |
Native PCIe® Lanes (Total/Usable) | 28 , 24 |
Additional Usable PCIe Lanes
from Motherboard | X670E 12x Gen4 |
X670 12x Gen4 |
B650E 8x Gen4 |
B650 8x Gen4 |
Native USB 3.2 Gen 2 (10Gbps) Ports | 4 |
Native USB 2.0 (480Mbps) Ports | 1 |
NVMe Support | Boot , RAID0 , RAID1 , RAID10 |
System Memory Type | DDR5 |
Memory Channels | 2 |
Max. Memory | 128 GB |
System Memory Subtype | UDIMM |
Max Memory Speed | 2x1R DDR5-5200 |
2x2R DDR5-5200 |
4x1R DDR5-3600 |
4x2R DDR5-3600 |
ECC Support | Yes (Requires mobo support) |
Graphical Capability | Graphics Model | AMD Radeon™ Graphics |
Graphics Core Count | 2 |
Graphics Frequency | 2200 MHz |
USB Type-C® DisplayPort™
Alternate Mode | Yes |
Technology | Supported Technologies | AMD EXPO™ Memory Overclocking Technology,
Precision Boost Overdrive ,
Curve Optimizer Voltage Offsets,
AMD Ryzen™ Master Support, AMD EXPO™ Technology, AMD Ryzen™ Technologies |
