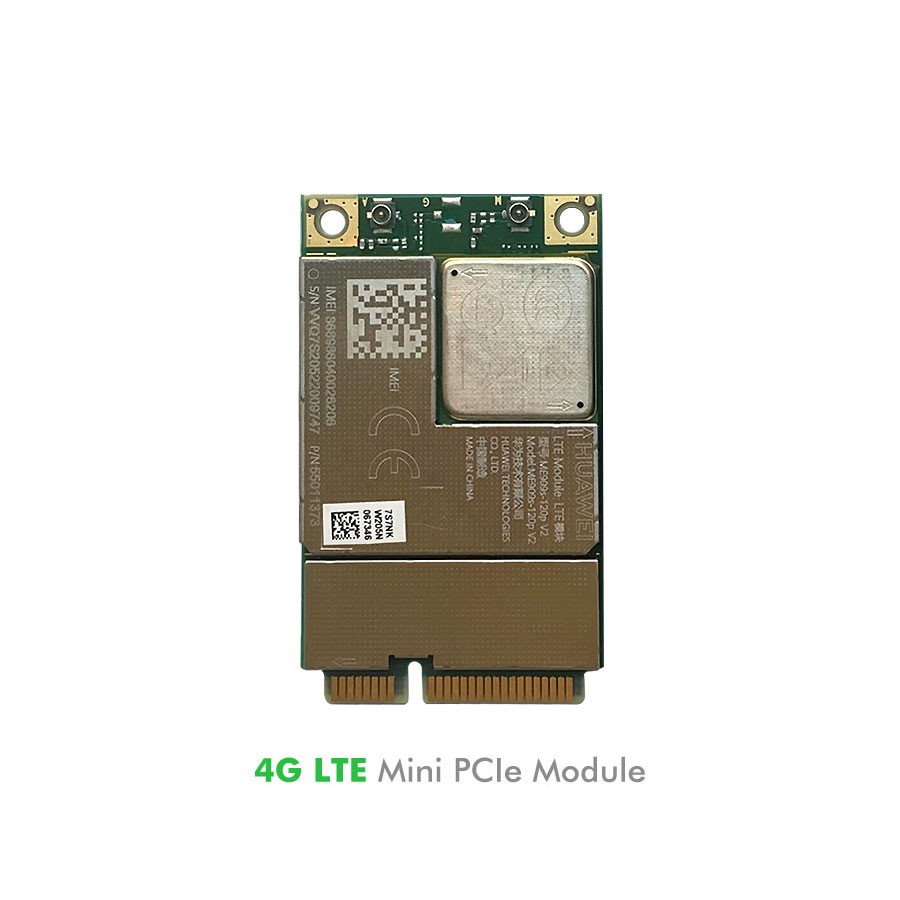

Huawei ME909s-120 V2 Mini PCIe 4G LTE WWAN Module 150mbps
Huawei ME909s-120 V2 Mini PCIe 4G LTE WWAN Module 150mbps-NWEL-027
Huawei ME909s-120 V2 Mini PCIe 4G LTE WWAN Module 150mbps-NWEL-027

Huawei ME909s-120 V2 Mini PCIe 4G LTE WWAN Module 150mbps

PRODUCT CODE: NWEL-027

ME909s-120 V2 is the first LTE cat4 module based on Hi-Silicon chipset, high-quality designed LTE module in small size and Huawei standard LGA form factor, especially for industrial-grade M2M applications such as vehicle telematics, tracking, mobile payment, industrial router, safety monitor and industrial PDAs.

ME909s-120 V2 supports 150Mbps downlink data rate, including enhanced features like FOTA, USSD and Huawei enhanced AT commands.

ME909s-120 V2 (B1/B2/B3/B5/B7/B8/B20) supports Europe and Asia regions.

Specifications:

Model

Huawei ME909s-120 V2 Mini PCIe

Form Factor

Mini PCIe

Chipset

Hisilicon Balong 711

Technology

LTE - Cat 4

LTE Bands

B1 (2100), B2 (1900), B3 (1800), B5 (850), B7 (2600), B8 (900), B20 (800DD)

UMTS Bands

B1 (2100), B2 (1900), B8 (900), B5 (850)

GSM/EDGE Bands

B5 (850), B8 (900), B3 (1800), B2 (1900)

LTE Data Transfer Rate

Max Download Speed: up to 150 mbps

Max Upload Speed: up to 50 mbps

Antenna Connectors

IPEX MHF/U.FL

Data Interface

USB 2.0

Temp Range

-40°C to 85°C

Operating System

Windows 7/8/10, Linux, Android

Approvals

CE

Size

51 x 30.4 x 3.52 mm
