Intel® 3865U 6 LAN 4G Fanless Security Gateway Appliance

1 Year Warranty

PRODUCT CODE: MNHO-083

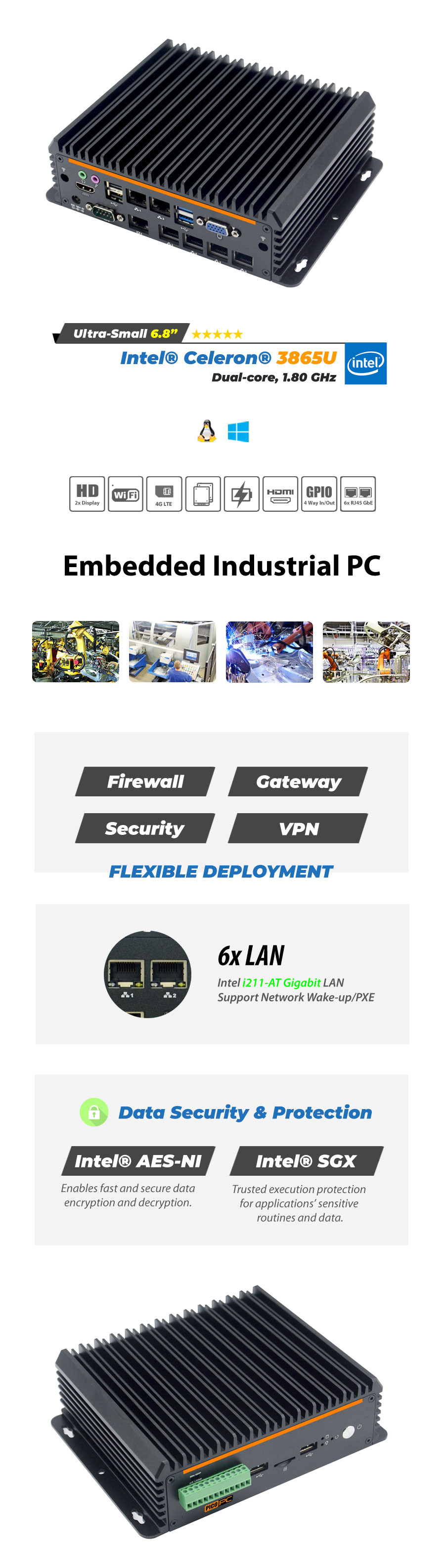

Intel® 3865U 6 LAN 4G Fanless Security Gateway Appliance - MNHO-083 | ImagePICO PC embedded Industrial fanless security gateway appliance equipped with Intel® 3865U processor features provides excellent security protection with Intel® AES-NI for secure and fast data encryption and decryption and Intel® SGX to create hardware enforced trusted execution protection for applications’ sensitive routines and data. Perfect for industrial automation, firewall, cyber security, manufacturing process etc.

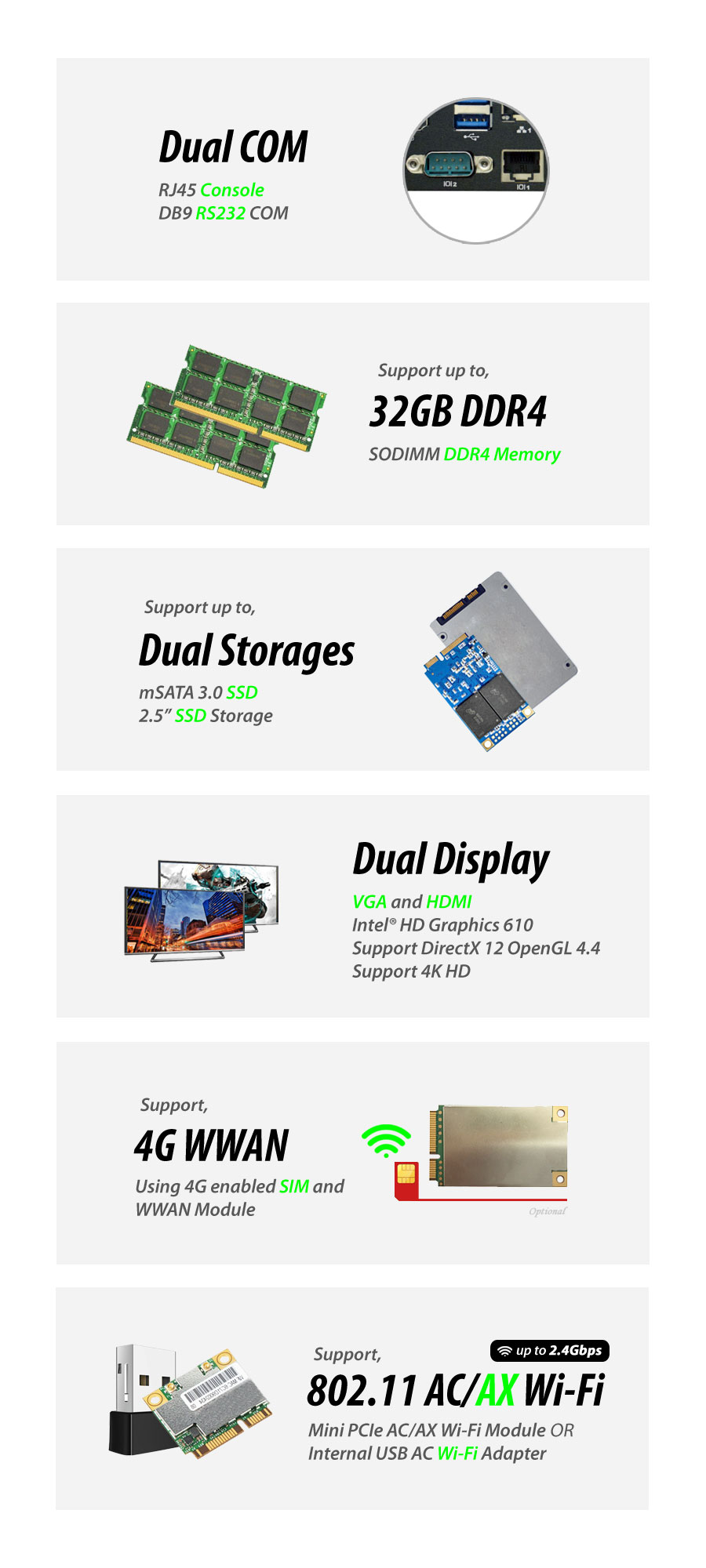

Six Intel i211-AT Gigabit RJ45 Ethernet ports (supports network wake-up/PXE) and dual COM ports (DB9 RS232 COM and RJ45 console) to take on a number of networking and communication tasks. Support wireless networks 802.11 AC/AX Wi-Fi 6 (up to 2.4Gbps) and internal USB AC Wi-Fi (up to 650Mbps) as well as WWAN 4G LTE (optional). Support up to 32GB SODIMM DDR4 non-ECC memory and dual storage drives including mSATA SSD and 2.5" SATA SSD/HDD. 10pin 4 way In/Out GPIO phoenix terminal and 6x USB ports. Highly reliable universal performance and energy efficient. Compatible with Windows 10, Linux & Firewalls etc.

Completely fanless aluminium alloy compact size durable dustproof housing with perfect heat dissipation to cool the internals and increase the work efficiency and capacity to get longer product life and reliable silent running.

Features:

Completely Fanless Security Gateway Network Appliance
Intel® Celeron® 3865U Dual-Core Processor
2 Threads, 2 MB Intel® Smart Cache, 1.80 GHz
Aluminium Alloy Dustproof
Six Intel i211-AT Gigabit RJ45 Ethernet
Dual VGA & HDMI Display, Support 4K HD
Intel® HD Graphics 610, Support DirectX 12 OpenGL 4.4
12pin 4 Way In/Out GPIO Phoenix Terminal
RS232 COM and RJ45 Console
Support 802.11 AC/AX Wi-Fi 6 & WWAN 4G LTE
Support up to 32GB SODIMM DDR4 Memory
Support Dual Storage (mSATA & 2.5" SATA SSD/HDD)
Four USB 3.0 & Two USB 2.0 Ports
Intel® SGX & Intel® AES-NI Data Protection
Energy Efficient, Low Power Consumption
Support Windows 10 & Linux, Firewalls etc.
Perfect for Industrial Automation, Firewall, Cyber Security etc.

Specifications:

System

Model

PICO PC MNHO-083

Part Number (P/N)

MO83385UND6L2C

Processor

CPU

Intel® Celeron® 3865U

Frequency

1.8 GHz

TDP

15W

# of Cores

2

# of Threads

2

Cache

2 MB Intel® Smart Cache

Memory

Size

Support up to 32GB (optional)

Type

SODIMM DDR4 (non-ECC)

Slot

2

Storage

mSATA

Support 1 x mSATA SSD (optional)

2.5" SATA

Support 1 x 2.5" SATA SSD/HDD (optional)

Graphics

Ports

Dual Display (HDMI and VGA)

Features

Intel® HD Graphics 610

Support 4K HD

Support DirectX 12 OpenGL 4.4

Intel® Quick Sync Video

Intel® Clear Video HD Technology

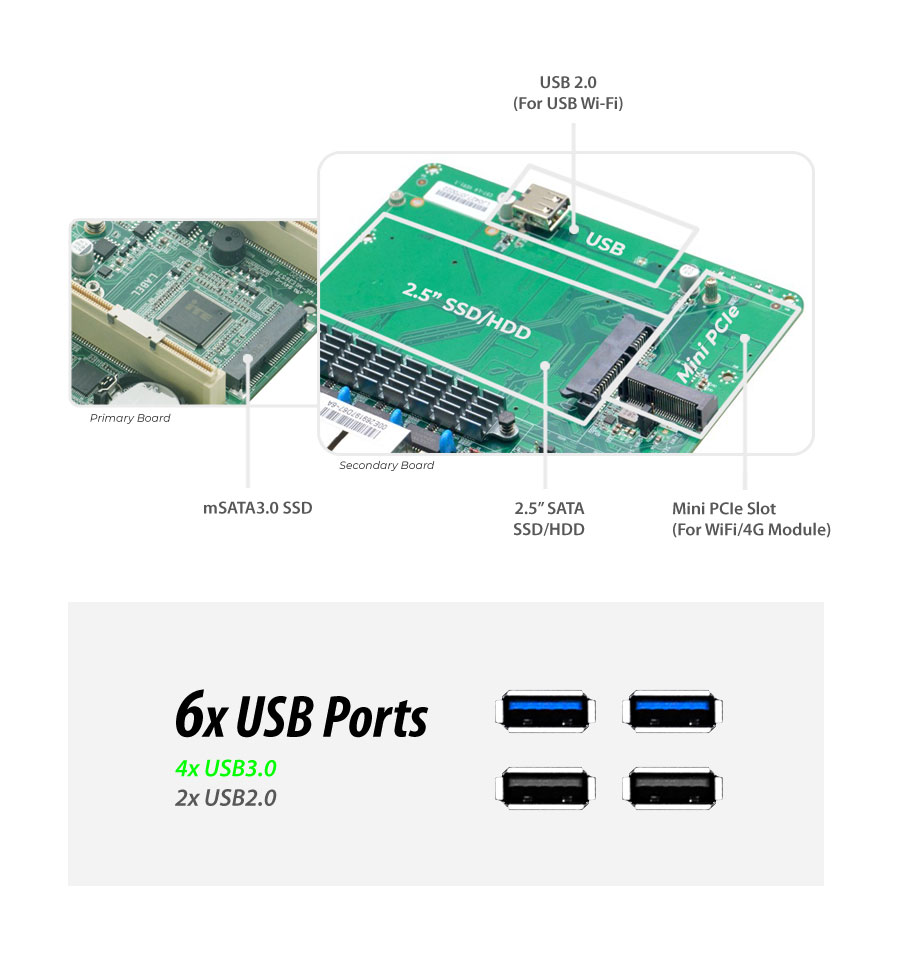

Expansion Slots

mSATA

1 x mSATA (For mSATA SSD)

Mini PCIe

1 x Full Size mini PCIe (For WiFi/4G Module)

2.5" SATA

1 x 2.5" SATA Slot (For 2.5" SSD/HDD)

USB

1 x Internal USB (For USB Wi-Fi)

CPU Advanced Technologies

Intel® Virtualization Technology (VT-x)

Yes

Intel® Virtualization Technology for Directed I/O (VT-d)

Yes

Enhanced Intel SpeedStep® Technology

Yes

Intel® Flex Memory Access

Yes

Intel® Smart Response Technology

Yes

Intel® AES New Instructions

Yes

Secure Key

Yes

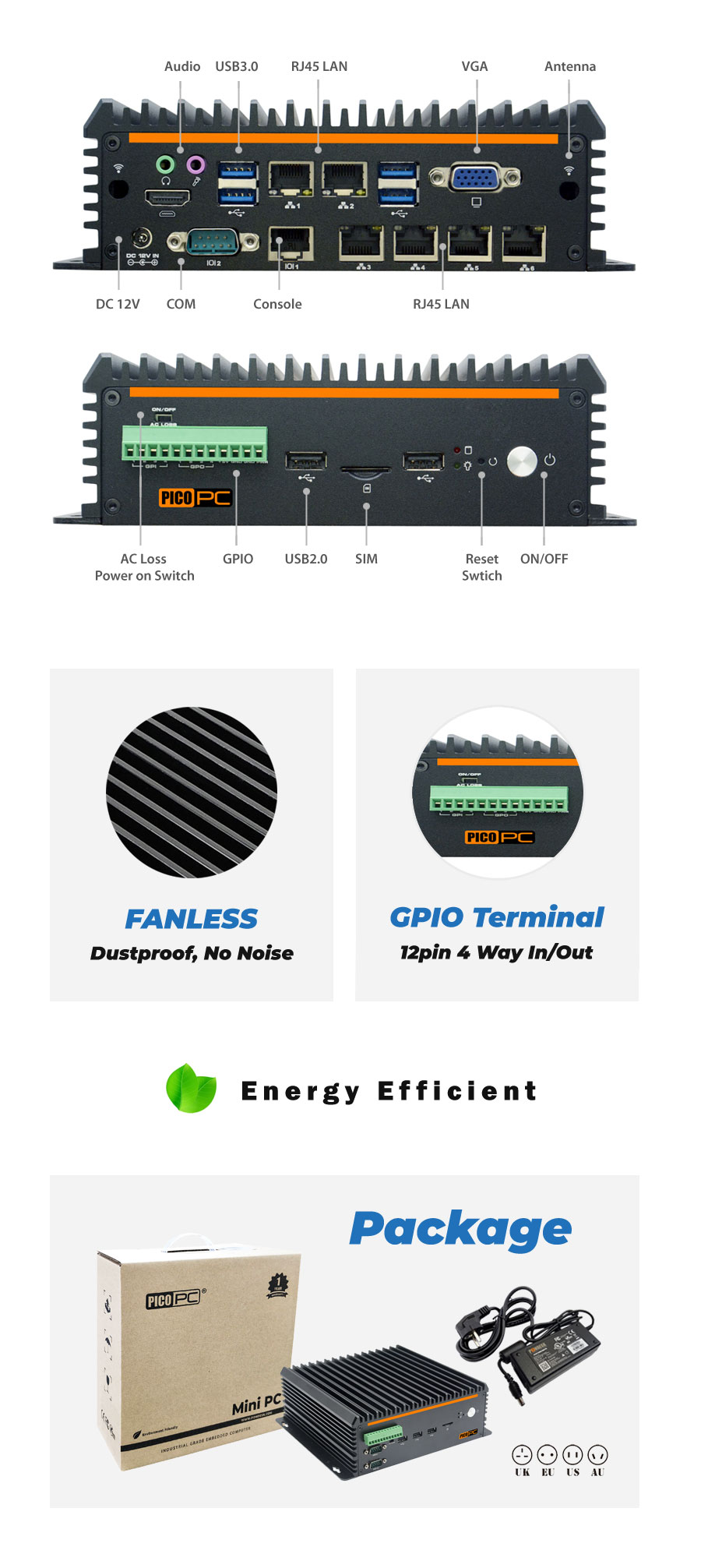

I/O Interfaces

LAN

6 x Intel i211-AT Gigabit LAN (Support Network Wake-up/PXE)

COM

1 x RJ45 Console

1 x RS232 DB9 COM

Display

1 x HDMI

1 x VGA

USB

4 x USB 3.0

2 x USB 2.0

DC-In

1 x DC 12V In (5.5*2.5mm Socket)

Audio

1 x Audio In & Out (ALC662 6-Channel HD)

GPIO

1 x 12pin 4 Way In/Out GPIO (Phoenix Terminal)

SIM

1 x SIM Slot

Antenna

2 x Antenna Ports

Switch

1 x Reset Switch

1 x Power Switch

1 x AC Loss Power on Switch

LED Indicator

1 x HDD LED

1 x Power LED

OS

Windows 10

Support

Linux

Support

Power Adapter

Input

AC 100-240V ~ 50-60Hz

Output

DC 12V 5A

Safety & EMC

UL, CE, FCC, RoHS

EMC EN55022 CLASS B

IEC 60950-1

Energy saving standards

Energy Star Ver. 2.0

DOE Level VI

ErP CoC Version 5 Tier 2

Working Environment

Operating Temperature

-10°C ~ 30°C

Storage Temperature

-20°C ~ 70°C

Relative Humidity

5% - 95% relative humidity (non-condensing)

Vibration

0.5g rms/5-500HZ/random/operating

Compliance

Approvals

CE, FCC & RoHS

Others

BIOS

64Mb Flash ROM

Watchdog

Support (L256 Segments, 0~255 Sec.)

Cooling

Aluminium Alloy FANLESS, Silent

Size

173mm*156mm*57mm (L*W*H)

Package

1 x Mini PC

1 x Power Adapter

1 x Power Cord

Intel® 3865U 6 LAN 4G Fanless Security Gateway Appliance - MNHO-083 | ImageIntel® 3865U 6 LAN 4G Fanless Security Gateway Appliance - MNHO-083 | ImageIntel® 3865U 6 LAN 4G Fanless Security Gateway Appliance - MNHO-083 | ImageIntel® 3865U 6 LAN 4G Fanless Security Gateway Appliance - MNHO-083 | Image
MNHO-086 Datasheet

This section describes the real-world performance with respect to different firewalls; showing details below. This will outline the technical specification & configurations required by a firewall administrator to operate and troubleshoot the hardware/software properly.


Kerio Control Hardware Performance

Total Firewall Throughput

Firewall Throughput

2.80 Gbps

Number of Users

125-250



Firewall Sessions

Concurrent Sessions (TCP)

123 K

New Sessions/Second (TCP)

1,200

IPSec VPN Peers

300



IPSec VPN Tunnel Throughput

IPSec VPN (TCP)  AES-128

 220 Mbps

IPSec VPN (TCP)  AES-256

152 Mbps

IPSec VPN (UDP)  AES-128

465 Mbps

IPSec VPN (UDP)  AES-256

310 Mbps

IPSec VPN Server Throughput

IPSec VPN (TCP) AES-128 Remote Access

160 Mbps

IPSec VPN (UDP) AES-128 Remote Access

210 Mbps

IPSec VPN  (TCP) AES-128 end-to-end

80 Mbps

IPSec VPN  (UDP) AES-128 end-to-end

110 Mbps

KERIO VPN Throughput

Kerio VPN (TCP) AES-256 Remote Access

510 Mbps

Kerio VPN (UDP) AES-256 Remote Access

540 Mbps

Kerio VPN  (TCP) AES-256 end-to-end

340 Mbps

Kerio VPN  (UDP) AES-256 end-to-end

351 Mbps

VLAN Mode Throughput

L3 (TCP)

947 Mbps

L3 (UDP)

955 Mbps

NAT Mode Throughput

L3 (TCP)

953 Mbps

L3 (UDP)

956 Mbps

Routed Mode Throughput

L3 (TCP)

953 Mbps

L3 (UDP)

955 Mbps


pfSense Hardware Performance

Total Firewall Throughput

Firewall Throughput

2.80 Gbps

Number of Users

550-1100



Firewall Sessions

Concurrent Sessions (TCP)

1.1 Million

New Sessions/Second (TCP)

40,000

IPSec VPN Peers

300



IPSec VPN Tunnel Throughput

IPSec VPN (TCP)  AES-128

328 Mbps

IPSec VPN (TCP)  AES-256

310 Mbps

IPSec VPN (UDP)  AES-128

354 Mbps

IPSec VPN (UDP)  AES-256

318 Mbps

OPEN VPN Throughput

OPEN VPN (TCP) AES-256 Remote Access

389 Mbps

OPEN VPN (UDP) AES-256 Remote Access

400 Mbps

OPEN VPN  (TCP) AES-256 end-to-end

246 Mbps

OPEN VPN  (UDP) AES-256 end-to-end

305 Mbps

Bridge Mode Throughput

L2 (TCP)

957 Mbps

L2 (UDP)

960 Mbps

NAT Mode Throughput

L3 (TCP)

959 Mbps

L3 (UDP)

956 Mbps

Routed Mode Throughput

L3 (TCP)

958 Mbps

L3 (UDP)

956 Mbps


OPNsense Hardware Performance

Total Firewall Throughput

Firewall Throughput

2.60 Gbps

Number of Users

550-1100



Firewall Sessions

Concurrent Sessions (TCP)

1.20 Million

New Sessions/Second (TCP)

44,000

IPSec VPN Peers

300



IPSec VPN Tunnel Throughput

IPSec VPN (TCP)  AES-128

289 Mbps

IPSec VPN (TCP)  AES-256

260 Mbps

IPSec VPN (UDP)  AES-128

322 Mbps

IPSec VPN (UDP)  AES-256

291 Mbps

OPEN VPN Throughput

OPEN VPN (TCP) AES-256 Remote Access

487 Mbps

OPEN VPN (UDP) AES-256 Remote Access

 530 Mbps

OPEN VPN  (TCP) AES-256 end-to-end

390 Mbps

OPEN VPN  (UDP) AES-256 end-to-end

440 Mbps

Bridge Mode Throughput

L2 (TCP)

954 Mbps

L2 (UDP)

956 Mbps

NAT Mode Throughput

L3 (TCP)

950 Mbps

L3 (UDP)

955 Mbps

Routed Mode Throughput

L3 (TCP)

951 Mbps

L3 (UDP)

956 Mbps


Untangle Hardware Performance

Total Firewall Throughput

Firewall Throughput

2.75 Gbps

IPS Throughput

1.93 Gbps

Number of Users

550-1100



Firewall Sessions

Concurrent Sessions (TCP)

0.52 Million

New Sessions/Second (TCP)

40,000

IPSec VPN Peers

300



IPSec VPN Tunnel Throughput

IPSec VPN (TCP)  AES-128

400 Mbps

IPSec VPN (TCP)  AES-256

344 Mbps

IPSec VPN (UDP)  AES-128

412 Mbps

IPSec VPN (UDP)  AES-256

365 Mbps

OPEN VPN Throughput

OPEN VPN (TCP) AES-256 Remote Access

390 Mbps

OPEN VPN (UDP) AES-256 Remote Access

540 Mbps

OPEN VPN  (TCP) AES-256 end-to-end

360 Mbps

OPEN VPN  (UDP) AES-256 end-to-end

475 Mbps

Bridge Mode Throughput

L2 (TCP)

957 Mbps

L2 (UDP)

961 Mbps

NAT Mode Throughput

L3 (TCP)

954 Mbps

L3 (UDP)

950 Mbps

Routed Mode Throughput

L3 (TCP)

953 Mbps

L3 (UDP)

956 Mbps


Endian Hardware Performance

Total Firewall Throughput

Firewall Throughput

2.80 Gbps

IPS Throughput

650 Mbps

Number of Users

550-1100



Firewall Sessions

Concurrent Sessions (TCP)

0.61 Million

New Sessions/Second (TCP)

30,000

IPSec VPN Peers

300



IPSec VPN Tunnel Throughput

IPSec VPN (TCP)  AES-128

387 Mbps

IPSec VPN (TCP)  AES-256

380 Mbps

IPSec VPN (UDP)  AES-128

400 Mbps

IPSec VPN (UDP)  AES-256

390 Mbps

OPEN VPN Throughput

OPEN VPN (TCP) AES-256 Remote Access

385 Mbps

OPEN VPN (UDP) AES-256 Remote Access

445 Mbps

OPEN VPN  (TCP) AES-256 end-to-end

284 Mbps

OPEN VPN  (UDP) AES-256 end-to-end

350 Mbps

Bridge Mode Throughput

L2 (TCP)

956 Mbps

L2 (UDP)

960 Mbps

NAT Mode Throughput

L3 (TCP)

951 Mbps

L3 (UDP)

955 Mbps

Routed Mode Throughput

L3 (TCP)

952 Mbps

L3 (UDP)

955 Mbps


Sophos Hardware Performance

Total Firewall Throughput

Firewall Throughput

2.70 Gbps

IPS Throughput

1 Gbps

Number of Users

550-1100



Firewall Sessions

Concurrent Sessions (TCP)

0.45 Million

New Sessions/Second (TCP)

36,000

IPSec VPN Peers

300



IPSec VPN Tunnel Throughput

IPSec VPN (TCP)  AES-128

445 Mbps

IPSec VPN (TCP)  AES-256

408 Mbps

IPSec VPN (UDP)  AES-128

500 Mbps

IPSec VPN (UDP)  AES-256

436 Mbps

OPEN VPN Throughput

OPEN VPN (TCP) AES-256 Remote Access

104 Mbps

OPEN VPN (UDP) AES-256 Remote Access

100 Mbps

OPEN VPN (TCP) AES-256 end-to-end

55 Mbps

OPEN VPN (UDP) AES-256 end-to-end

60 Mbps

Bridge Mode Throughput

L2 (TCP)

960 Mbps

L2 (UDP)

958 Mbps

NAT Mode Throughput

L3 (TCP)

953 Mbps

L3 (UDP)

955 Mbps

Routed Mode Throughput

L3 (TCP)

957 Mbps

L3 (UDP)

957 Mbps
