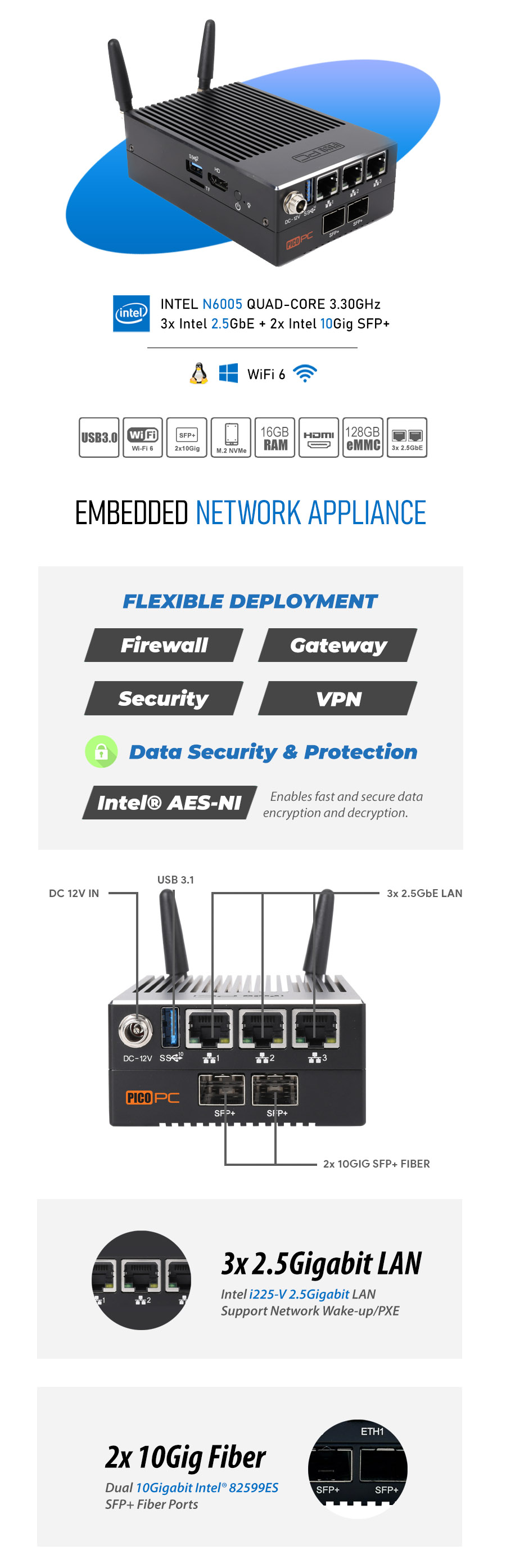

In Stock 1 Year Warranty UK Free ShippingPRODUCT CODE: MNHO-113
|
System |
Model |
PICO PC® MNHO-113 |
|
Processor |
CPU |
Intel® Pentium Silver N6005 Quad Core Processor |
|
Frequency |
up to 3.30 GHz |
|
|
TDP |
10W |
|
|
# of Cores |
4 |
|
|
# of Threads |
4 |
|
|
Cache |
4 MB L3 Cache |
|
|
Memory |
Size |
Embedded 16GB LPDDR4X Memory |
|
Storage |
eMMC |
Embedded 128GB eMMC5.1 Storage |
|
M.2 NVMe |
Support 1 x M.2 NVMe 2280 SSD (optional) |
|
|
TF Card |
Support |
|
|
Wi-Fi / LTE |
Wi-Fi |
Intel® Wi-Fi 6 AX201 (up to 2.4 Gbps) & Bluetooth |
|
I/O Interfaces |
LAN |
3 x Intel® I225-V RJ45 Gigabit LAN |
|
Fiber Port |
2 x Intel® 82599ES 10 Gigabit SFP+ Fiber Ports |
|
|
Display |
1 x HDMI 2.0 |
|
|
USB |
2 x USB 3.1 Gen2 Ports (up to 10Gbps) |
|
|
DC-In |
1 x DC 12V In |
|
|
Antenna |
2 x Antenna Ports |
|
|
CPU Advanced Technologies |
Intel® Speed Shift Technology |
Yes |
|
Enhanced Intel SpeedStep® Technology |
Yes |
|
|
Thermal Monitoring Technologies |
Yes |
|
|
Intel® Identity Protection Technology |
Yes |
|
|
Intel® Smart Response Technology |
Yes |
|
|
Intel® AES New Instructions |
Yes |
|
|
Intel® OS Guard |
Yes |
|
|
Intel® Boot Guard |
Yes |
|
|
Intel® Virtualization Technology (VT-x) |
Yes |
|
|
Intel® Virtualization Technology for Directed I/O (VT-d) |
Ye |
|
|
OS |
Windows |
Support Windows 10/11 |
|
Linux |
Support Ubuntu 22.04 LTS, Ubuntu Server 22.04 LTS, CentOS 8 stream,
Debian 11.3 etc |
|
|
FreeBSD |
Support FreeBSD 12.3 Stable and above |
|
|
Firewalls/Hypervisors |
Support pfSense 2.6.0, Proxmox VE 7.1, OPNsense 22.7, VMware ESXI
7-Custom etc |
|
|
Others |
Cooling |
System FAN |
|
Operating Temperature |
0°C ~ 40°C |
|
|
Compliance |
CE, FCC & RoHS, UKCA |
|
|
Size |
127.2 x 83 x 40.85mm |
|
|
Package |
1 x Mini Network Appliance |
|
|
1 x Power Adapter |
||
|
2 x WiFi Antennas |
This section describes the real-world performance with respect to different firewalls; showing details below. This will outline the technical specification & configurations required by a firewall administrator to operate and troubleshoot the hardware/software properly.
|
pfSense Hardware Performance |
||
|
Total Firewall Throughput |
Firewall Throughput |
9.6 Gbps |
|
IPS Throughput |
2.20 Gbps |
|
|
Number of Users |
800-1600 |
|
|
Firewall Sessions |
Concurrent Sessions (TCP) |
0.82 Million |
|
New Sessions/Second (TCP) |
27,000 |
|
|
IPSec VPN Peers |
600 |
|
|
IPSec VPN Tunnel Throughput |
IPSec VPN (TCP) AES-128 |
402 Mbps |
|
IPSec VPN (TCP) AES-256 |
355 Mbps |
|
|
IPSec VPN (UDP) AES-128 |
540 Mbps |
|
|
IPSec VPN (UDP) AES-256 |
400 Mbps |
|
|
OPEN VPN Throughput |
OPEN VPN (TCP) AES-256 Remote Access |
880 Mbps |
|
OPEN VPN (UDP) AES-256 Remote Access |
600 Mbps |
|
|
OPEN VPN (TCP) AES-256
end-to-end |
850 Mbps |
|
|
OPEN VPN (UDP) AES-256
end-to-end |
660 Mbps |
|
|
Bridge Mode Throughput |
L2 (TCP) |
8.70 Gbps |
|
L2 (UDP) |
8.10 Gbps |
|
|
NAT Mode Throughput |
L3 (TCP) |
6.50 Gbps |
|
L3 (UDP) |
8.0 Gbps |
|
|
Routed Mode Throughput |
L3 (TCP) |
8.50 Gbps |
|
L3 (UDP) |
8.53 Gbps |
|
|
OPNsense Hardware Performance |
||
|
Total Firewall Throughput |
Firewall Throughput |
11.7 Gbps |
|
IPS Throughput |
2.26 Gbps |
|
|
Number of Users |
800-1600 |
|
|
Firewall Sessions |
Concurrent Sessions (TCP) |
0.85 Million |
|
New Sessions/Second (TCP) |
31,000 |
|
|
IPSec VPN Peers |
600 |
|
|
IPSec VPN Tunnel Throughput |
IPSec VPN (TCP) AES-128 |
700 Mbps |
|
IPSec VPN (TCP) AES-256 |
660 Mbps |
|
|
IPSec VPN (UDP) AES-128 |
725 Mbps |
|
|
IPSec VPN (UDP) AES-256 |
580 Mbps |
|
|
OPEN VPN Throughput |
OPEN VPN (TCP) AES-256 Remote Access |
690 Mbps |
|
OPEN VPN (UDP) AES-256 Remote Access |
800 Mbps |
|
|
OPEN VPN (TCP) AES-256
end-to-end |
560 Mbps |
|
|
OPEN VPN (UDP) AES-256
end-to-end |
750 Mbps |
|
|
Bridge Mode Throughput |
L2 (TCP) |
9.40 Gbps |
|
L2 (UDP) |
8.60 Gbps |
|
|
NAT Mode Throughput |
L3 (TCP) |
9.0 Gbps |
|
L3 (UDP) |
7.80 Gbps |
|
|
Routed Mode Throughput |
L3 (TCP) |
9.30 Gbps |
|
L3 (UDP) |
8.20 Gbps |
|
