Intel® i3-8145U 6 LAN 4G Fanless Security Gateway Appliance

In Stock       1 Year Warranty       UK Free Shipping

PRODUCT CODE: MNHO-086


Intel® i3-8145U 6 LAN 4G Fanless Security Gateway Appliance - MNHO-086 | Image

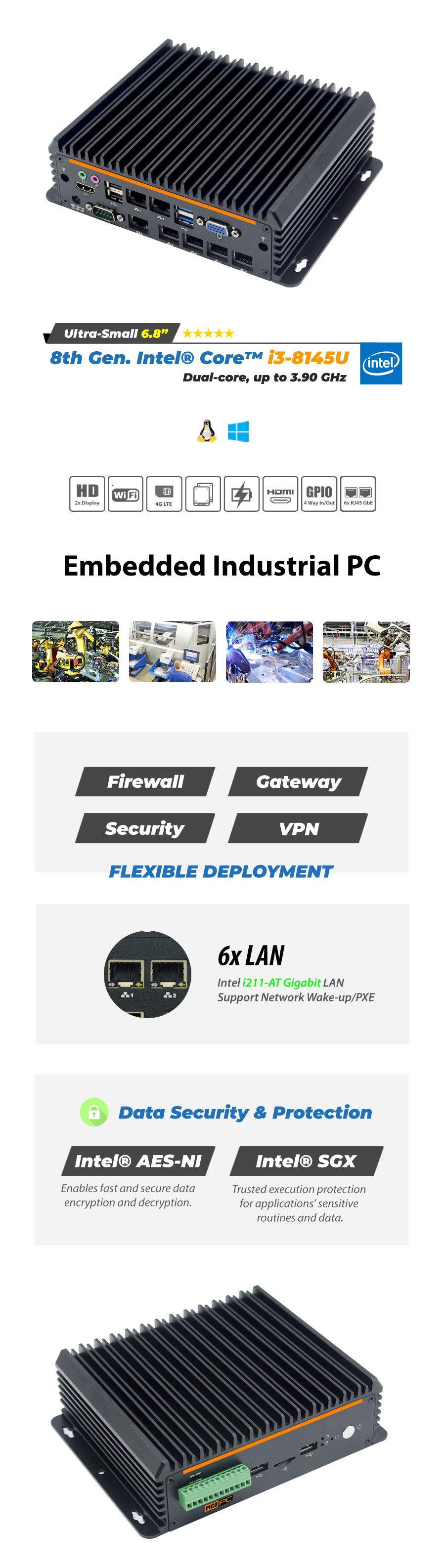

PICO PC embedded Industrial fanless security gateway appliance equipped with Intel® Core™ i3-8145U dual-core processor (up to 3.90 GHz) features excellent security protection with Intel® AES-NI for secure and fast data encryption and decryption and Intel® SGX to create hardware enforced trusted execution protection for applications’ sensitive routines and data. Perfect for industrial automation, firewall, cyber security, manufacturing process etc.

Six Intel i211-AT Gigabit RJ45 Ethernet ports (supports network wake-up/PXE) and dual COM ports (DB9 RS232 COM and RJ45 console) to take on a number of networking and communication tasks. Support wireless networks 802.11 AC/AX Wi-Fi 6 (up to 2.4Gbps) and internal USB AC Wi-Fi (up to 650Mbps) as well as WWAN 4G LTE (optional). Support up to 32GB SODIMM DDR4 non-ECC memory and dual storage drives including mSATA SSD and 2.5" SATA SSD/HDD. 10pin 4 way In/Out GPIO phoenix terminal and 6x USB ports. Highly reliable universal performance and energy efficient. Compatible with Windows 10, Linux & Firewalls etc.

Completely fanless aluminium alloy compact size durable dustproof housing with perfect heat dissipation to cool the internals and increase the work efficiency and capacity to get longer product life and reliable silent running.

Features:
Completely Fanless Security Gateway Network Appliance
Intel® Core™ i3-8145U Dual-Core Processor
4 Threads, 4 MB Intel® Smart Cache, up to 3.90 GHz
Aluminium Alloy Dustproof
Six Intel i211-AT Gigabit RJ45 Ethernet
Dual VGA & HDMI Display, Support 4K HD
Intel® HD Graphics 620
10pin 4 Way In/Out GPIO Phoenix Terminal
RS232 COM and RJ45 Console
Support 802.11 AC/AX Wi-Fi 6 & WWAN 4G LTE
Support up to 32GB SODIMM DDR4 Memory
Support Dual Storage (mSATA & 2.5" SATA SSD/HDD)
Four USB 3.0 & Two USB 2.0 Ports
Intel® SGX & Intel® AES-NI Data Protection
Energy Efficient, Low Power Consumption
Support Windows 10 & Linux, Firewalls etc.
Perfect for Industrial Automation, Firewall, Cyber Security etc.

Specifications:

System

Model

PICO PC MNHO-086

Part Number (P/N)

MO86I345UND6L2C

Processor

CPU

Intel® Core™ i3-8145U

Frequency

Up to 3.90 GHz

TDP

15W

# of Cores

2

# of Threads

4

Cache

4 MB Intel® Smart Cache

Memory

Size

Support up to 32GB (optional)

Type

SODIMM DDR4 (non-ECC)

Slot

2

Storage

mSATA

Support 1 x mSATA SSD (optional)

2.5" SATA

Support 1 x 2.5" SATA SSD/HDD (optional)

Graphics

Ports

Dual Display (HDMI and VGA)

Features

Intel® HD Graphics 610

Support 4K HD

Support DirectX 12 OpenGL 4.5

Intel® Quick Sync Video

Intel® Clear Video HD Technology

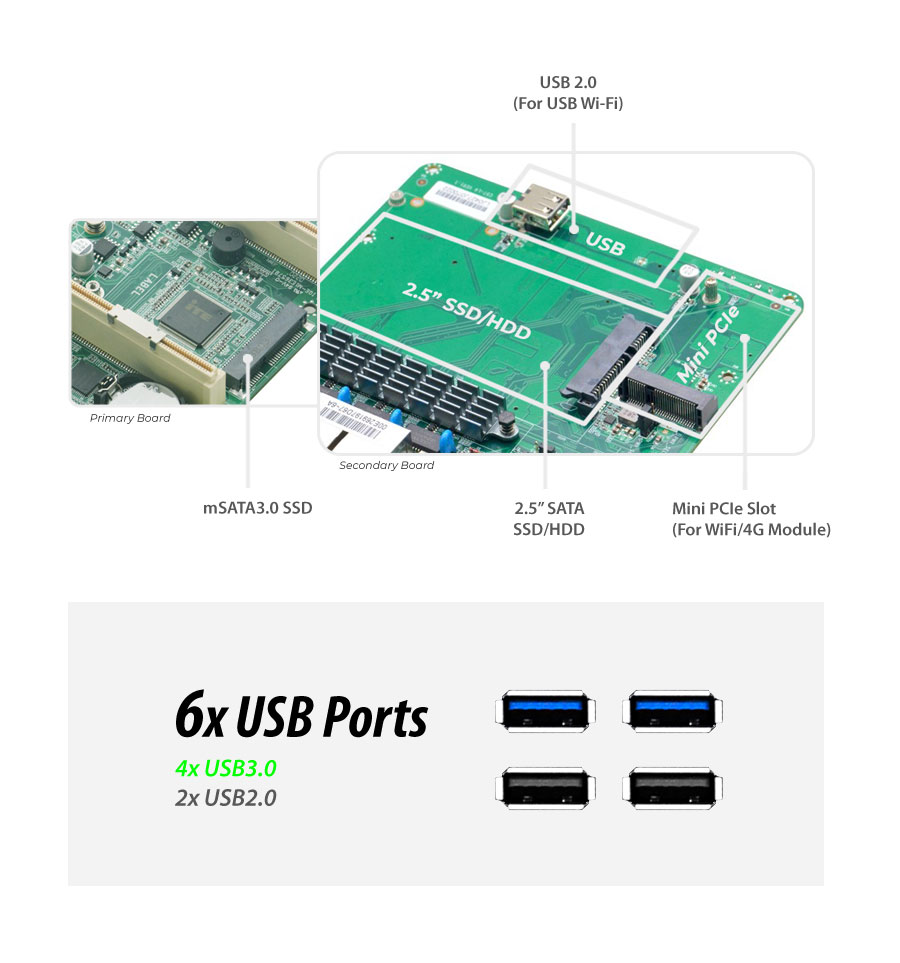

Expansion Slots

mSATA

1 x mSATA (For mSATA SSD)

Mini PCIe

1 x Full Size mini PCIe (For WiFi/4G Module)

2.5" SATA

1 x 2.5" SATA Slot (For 2.5" SSD/HDD)

USB

1 x Internal USB (For USB Wi-Fi)

CPU Advanced Technologies

Intel® Speed Shift Technology

Yes

Intel® Hyper-Threading Technology

Yes

Intel® Virtualization Technology (VT-x)

Yes

Intel® Virtualization Technology for Directed I/O (VT-d)

Yes

Intel® VT-x with Extended Page Tables (EPT)

Yes

Enhanced Intel SpeedStep® Technology

Yes

Thermal Monitoring Technologies

Yes

Intel® Identity Protection Technology

Yes

Intel® Smart Response Technology

Yes

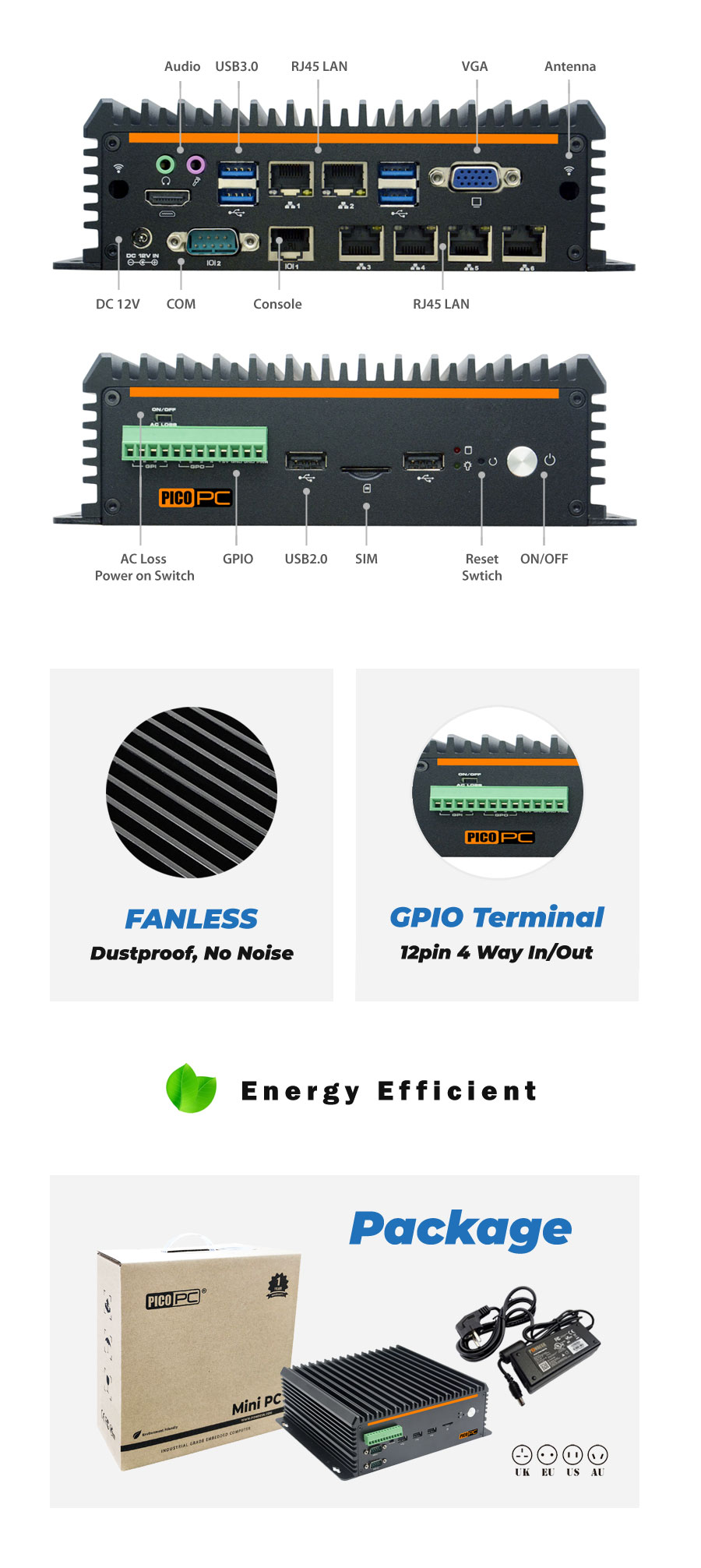

I/O Interfaces

LAN

6 x Intel i211-AT Gigabit LAN (Support Network Wake-up/PXE)

COM

1 x RJ45 Console

1 x RS232 DB9 COM

Display

1 x HDMI

1 x VGA

USB

4 x USB 3.0

2 x USB 2.0

DC-In

1 x DC 12V In (5.5*2.5mm Socket)

Audio

1 x Audio In & Out (ALC662 6-Channel HD)

GPIO

1 x 12pin 4 Way In/Out GPIO (Phoenix Terminal)

SIM

1 x SIM Slot

Antenna

2 x Antenna Ports

Switch

1 x Reset Switch

1 x Power Switch

1 x AC Loss Power on Switch

LED Indicator

1 x HDD LED

1 x Power LED

OS

Windows 10

Support

Linux

Support

Power Adapter

Input

AC 100-240V ~ 50-60Hz

Output

DC 12V 5A

Safety & EMC

UL, CE, FCC, RoHS

EMC EN55022 CLASS B

IEC 60950-1

Energy saving standards

Energy Star Ver. 2.0

DOE Level VI

ErP CoC Version 5 Tier 2

Working Environment

Operating Temperature

-10°C ~ 30°C

Storage Temperature

-20°C ~ 70°C

Relative Humidity

5% - 95% relative humidity (non-condensing)

Vibration

0.5g rms/5-500HZ/random/operating

Compliance

Approvals

CE, FCC & RoHS

Others

BIOS

64Mb Flash ROM

Watchdog

Support (L256 Segments, 0~255 Sec.)

Cooling

Aluminium Alloy FANLESS, Silent

Size

173mm*156mm*57mm (L*W*H)

Package

1 x Mini PC

1 x Power Adapter

1 x Power Cord

Intel® i3-8145U 6 LAN 4G Fanless Security Gateway Appliance - MNHO-086 | ImageIntel® i3-8145U 6 LAN 4G Fanless Security Gateway Appliance - MNHO-086 | ImageIntel® i3-8145U 6 LAN 4G Fanless Security Gateway Appliance - MNHO-086 | ImageIntel® i3-8145U 6 LAN 4G Fanless Security Gateway Appliance - MNHO-086 | Image

Intel® i3-8145U 6 LAN 4G Fanless Security Gateway Appliance - MNHO-086 | Image

This section describes the real-world performance with respect to different firewalls; showing details below. This will outline the technical specification & configurations required by a firewall administrator to operate and troubleshoot the hardware/software properly.


pfSense Hardware Performance

Total Firewall Throughput

Firewall Throughput

2.80 Gbps

Number of Users

675-2,700



Firewall Sessions

Concurrent Sessions (TCP)

1.25 Million

New Sessions/Second (TCP)

48,000

IPSec VPN Peers

600



IPSec VPN Tunnel Throughput

IPSec VPN (TCP)  AES-128

370 Mbps

IPSec VPN (TCP)  AES-256

320 Mbps

IPSec VPN (UDP)  AES-128

394 Mbps

IPSec VPN (UDP)  AES-256

286 Mbps

OPEN VPN Throughput

OPEN VPN (TCP) AES-256 Remote Access

734 Mbps

OPEN VPN (UDP) AES-256 Remote Access

860 Mbps

OPEN VPN  (TCP) AES-256 end-to-end

700 Mbps

OPEN VPN  (UDP) AES-256 end-to-end

820 Mbps

Bridge Mode Throughput

L2 (TCP)

959 Mbps

L2 (UDP)

957 Mbps

NAT Mode Throughput

L3 (TCP)

951 Mbps

L3 (UDP)

956 Mbps

Routed Mode Throughput

L3 (TCP)

952 Mbps

L3 (UDP)

956 Mbps


OPNsense Hardware Performance

Total Firewall Throughput

Firewall Throughput

2.78 Gbps

Number of Users

675-2,700



Firewall Sessions

Concurrent Sessions (TCP)

1.25 Million

New Sessions/Second (TCP)

53,700

IPSec VPN Peers

600



IPSec VPN Tunnel Throughput

IPSec VPN (TCP)  AES-128

332 Mbps

IPSec VPN (TCP)  AES-256

304 Mbps

IPSec VPN (UDP)  AES-128

415 Mbps

IPSec VPN (UDP)  AES-256

373 Mbps

OPEN VPN Throughput

OPEN VPN (TCP) AES-256 Remote Access

410 Mbps

OPEN VPN (UDP) AES-256 Remote Access

729 Mbps

OPEN VPN  (TCP) AES-256 end-to-end

360 Mbps

OPEN VPN  (UDP) AES-256 end-to-end

530 Mbps

Bridge Mode Throughput

L2 (TCP)

965 Mbps

L2 (UDP)

958 Mbps

NAT Mode Throughput

L3 (TCP)

958 Mbps

L3 (UDP)

956 Mbps

Routed Mode Throughput

L3 (TCP)

960 Mbps

L3 (UDP)

956 Mbps


Untangle Hardware Performance

Total Firewall Throughput

Firewall Throughput

2.78 Gbps

Number of Users

675-2,700



Firewall Sessions

Concurrent Sessions (TCP)

1.2 Million

New Sessions/Second (TCP)

40,000

IPSec VPN Peers

600



IPSec VPN Tunnel Throughput

IPSec VPN (TCP)  AES-128

716 Mbps

IPSec VPN (TCP)  AES-256

612 Mbps

IPSec VPN (UDP)  AES-128

738 Mbps

IPSec VPN (UDP)  AES-256

720 Mbps

OPEN VPN Throughput

OPEN VPN (TCP) AES-256 Remote Access

730 Mbps

OPEN VPN (UDP) AES-256 Remote Access

769 Mbps

OPEN VPN  (TCP) AES-256 end-to-end

618 Mbps



OPEN VPN  (UDP) AES-256 end-to-end

702 Mbps

Bridge Mode Throughput

L2 (TCP)

957 Mbps

L2 (UDP)

956 Mbps

NAT Mode Throughput

L3 (TCP)

953 Mbps

L3 (UDP)

955 Mbps

Routed Mode Throughput

L3 (TCP)

950 Mbps

L3 (UDP)

955 Mbps


Sophos Hardware Performance

Total Firewall Throughput

Firewall Throughput

2.81 Gbps

Number of Users

675-2,700



Firewall Sessions

Concurrent Sessions (TCP)

1.34 Million

New Sessions/Second (TCP)

49,000

IPSec VPN Peers

600



IPSec VPN Tunnel Throughput

IPSec VPN (TCP)  AES-128

490 Mbps

IPSec VPN (TCP)  AES-256

440 Mbps

IPSec VPN (UDP)  AES-128

512 Mbps

IPSec VPN (UDP)  AES-256

464 Mbps

OPEN VPN Throughput

OPEN VPN (TCP) AES-256 Remote Access

255 Mbps

OPEN VPN (UDP) AES-256 Remote Access

300 Mbps

OPEN VPN  (TCP) AES-256 end-to-end

132 Mbps

OPEN VPN  (UDP) AES-256 end-to-end

143 Mbps

Bridge Mode Throughput

L2 (TCP)

953 Mbps

L2 (UDP)

962 Mbps

NAT Mode Throughput

L3 (TCP)

951 Mbps

L3 (UDP)

960 Mbps

Routed Mode Throughput

L3 (TCP)

950 Mbps

L3 (UDP)

957 Mbps


Endian EFW Hardware Performance

Total Firewall Throughput

Firewall Throughput

2.80 Gbps

Number of Users

675-2,700



Firewall Sessions

Concurrent Sessions (TCP)

1.1 Million

New Sessions/Second (TCP)

31,000

IPSec VPN Peers

600



IPSec VPN Tunnel Throughput

IPSec VPN (TCP)  AES-128

437 Mbps

IPSec VPN (TCP)  AES-256

410 Mbps

IPSec VPN (UDP)  AES-128

447 Mbps

IPSec VPN (UDP)  AES-256

422 Mbps

OPEN VPN Throughput

OPEN VPN (TCP) AES-256 Remote Access

456 Mbps

OPEN VPN (UDP) AES-256 Remote Access

674 Mbps

OPEN VPN  (TCP) AES-256 end-to-end

360 Mbps

OPEN VPN  (UDP) AES-256 end-to-end

500 Mbps

Bridge Mode Throughput

L2 (TCP)

957 Mbps

L2 (UDP)

964 Mbps

NAT Mode Throughput

L3 (TCP)

952 Mbps

L3 (UDP)

958 Mbps

Routed Mode Throughput

L3 (TCP)

948 Mbps

L3 (UDP)

956 Mbps


Kerio Control Hardware Performance

Total Firewall Throughput

Firewall Throughput

2.81 Gbps

Number of Users

250-500



Firewall Sessions

Concurrent Sessions (TCP)

250 K

New Sessions/Second (TCP)

26,000

IPSec VPN Peers

600



IPSec VPN Tunnel Throughput

IPSec VPN (TCP)  AES-128

330 Mbps

IPSec VPN (TCP)  AES-256

265 Mbps

IPSec VPN (UDP)  AES-128

517 Mbps

IPSec VPN (UDP)  AES-256

390 Mbps

IPSec VPN Server Throughput

IPSec VPN (TCP) AES-128 Remote Access

271 Mbps

IPSec VPN (UDP) AES-128 Remote Access

290 Mbps

IPSec VPN  (TCP) AES-128 end-to-end

112 Mbps

IPSec VPN  (UDP) AES-128 end-to-end

150 Mbps

KERIO VPN Throughput

Kerio VPN (TCP) AES-256 Remote Access

675 Mbps

Kerio VPN (UDP) AES-256 Remote Access

704 Mbps

Kerio VPN  (TCP) AES-256 end-to-end

418 Mbps

Kerio VPN  (UDP) AES-256 end-to-end

450 Mbps

VLAN Mode Throughput

L3 (TCP)

958 Mbps

L3 (UDP)

962 Mbps

NAT Mode Throughput

L3 (TCP)

953 Mbps

L3 (UDP)

956 Mbps

Routed Mode Throughput

L3 (TCP)

954 Mbps

L3 (UDP)

960 Mbps
