PRODUCT CODE: MNHO-084
System |
Model |

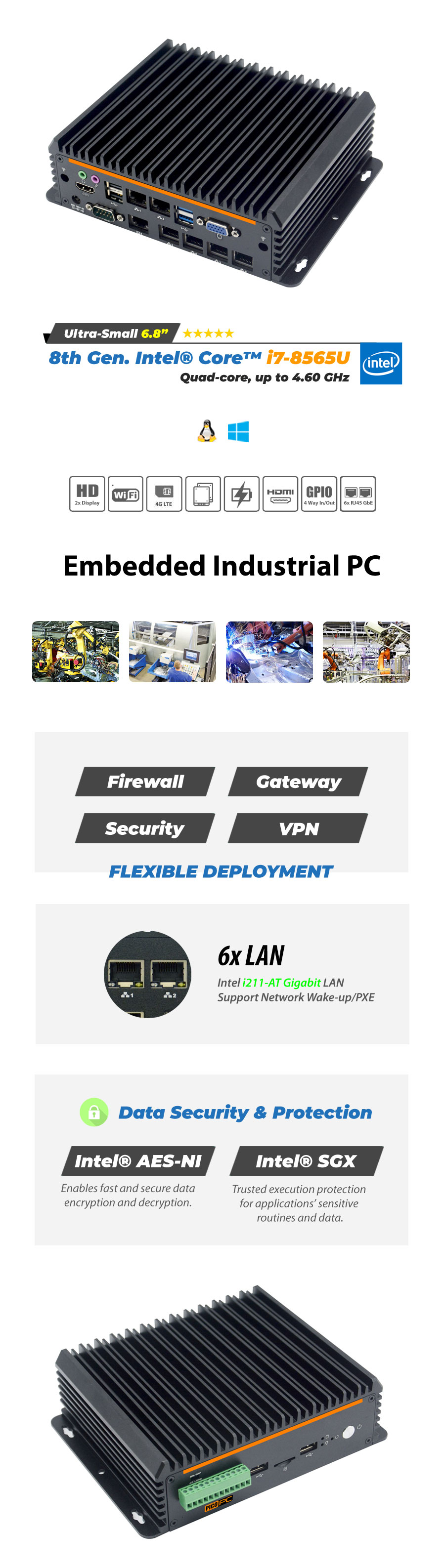

PICO PC
MNHO-084 |
Part
Number (P/N) |
MO84I765UND6L2C |
|
Processor |
CPU |
8th Gen. Intel® Core™ i7-8565U |
Frequency |
up to 4.60 GHz |
|
TDP |
15W |
|
# of Cores |
4 |
|
# of Threads |
8 |
|
Cache |
8 MB Intel® Smart Cache |
|
Memory |
Size |
Support up to 32GB (optional) |
Type |
SODIMM DDR4 (non-ECC) |
|
Slot |
2 |
|
Storage |
mSATA |
Support 1 x mSATA SSD (optional) |
2.5" SATA |
Support 1 x 2.5" SATA SSD/HDD
(optional) |
|
Graphics |
Ports |
Dual Display (HDMI and VGA) |
Features |
Intel® UHD Graphics 620 |
|
Support 4K HD |
||
Support DirectX 12 OpenGL 4.5 |
||
Intel® Quick Sync Video |
||
Intel® Clear Video HD Technology |
||
Expansion Slots |
mSATA |
1 x mSATA (For mSATA SSD) |
Mini PCIe |
1 x Full Size mini PCIe (For WiFi/4G Module) |
|
2.5" SATA |
1 x 2.5" SATA Slot (For 2.5" SSD/HDD) |
|
USB |
1 x Internal USB (For USB Wi-Fi) |
|
CPU Advanced Technologies |
Intel® Speed Shift Technology |
Yes |
Intel® Thermal Velocity Boost |
Yes |
|
Intel® Hyper-Threading Technology |
Yes |
|
Intel® Virtualization Technology |
Yes |
|
Enhanced Intel SpeedStep® Technology |
Yes |
|
Intel® Identity Protection Technology |
Yes |
|
Intel® Smart Response Technology |
Yes |
|
Intel® AES New Instructions |
Yes |
|
I/O Interfaces |
LAN |
6 x Intel i211-AT Gigabit LAN (Support
Network Wake-up/PXE) |
COM |
1 x RJ45 Console |
|
1 x RS232 DB9 COM |
||
Display |
1 x HDMI |
|
1 x VGA |
||
USB |
4 x USB 3.0 |
|
2 x USB 2.0 |
||
DC-In |
1 x DC 12V In (5.5*2.5mm Socket) |
|
Audio |
1 x Audio In & Out (ALC662 6-Channel HD) |
|
GPIO |
1 x 12pin 4 Way In/Out GPIO (Phoenix Terminal) |
|
SIM |
1 x SIM Slot |
|
Antenna |
2 x Antenna Ports |
|
Switch |
1 x Reset Switch |
|
1 x Power Switch |
||
1 x AC Loss Power on Switch |
||
LED Indicator |
1 x HDD LED |
|
1 x Power LED |
||
OS |
Windows 10 |
Support |
Linux |
Support |
|
Power Adapter |
Input |
AC 100-240V ~ 50-60Hz |
Output |
DC 12V 5A |
|
Safety & EMC |
UL, CE, FCC, RoHS |
|
EMC EN55022 CLASS B |
||
IEC 60950-1 |
||
Energy saving standards |
Energy Star Ver. 2.0 |
|
DOE Level VI |
||
ErP CoC Version 5 Tier 2 |
||
Working Environment |
Operating Temperature |
-10°C ~ 40°C |
Storage Temperature |
-20°C ~ 70°C |
|
Relative Humidity |
5% - 95% relative humidity (non-condensing) |
|
Vibration |
0.5g rms/5-500HZ/random/operating |
|
Compliance |
Approvals |
CE, FCC & RoHS |
Others |
BIOS |
64Mb Flash ROM |
Watchdog |
Support (L256 Segments, 0~255 Sec.) |
|
Cooling |
Aluminium Alloy FANLESS, Silent |
|
Size |
173mm*156mm*57mm (L*W*H) |
|
Package |
1 x Mini PC |
|
1 x Power Adapter |
||
1 x Power Cord |
This section describes the real-world performance of the PICO PC 6 LAN fanless security gateway appliance with respect to different firewalls; showing details below. This will outline the technical specification & configurations required by a firewall administrator to operate and troubleshoot the hardware/software properly.
pfSense Hardware Performance
Below mentioned are few real-world stress tests performed with pfSense as firewall OS on standard network firewall router box hardware with the following configuration.
CPU: Intel® Core™ i7-8565U (8M Cache, up to 4.60 GHz)
RAM: 32GB
Storage: 256GB 2.5" SATA SSD
* Network Firewall Server has 6x Gigabit Ethernet Ports, above stats are captured by using 1x Gigabit for WAN and 1x Gigabit for LAN, so total processing capacity calculated based on 1 Gigabit link.
** These are not theoretical stats, these are real world stats, means generated at the time of full system load. You can consider them a minimum level of the number. You will get more than that in your environment.
NOTE: Server ports are capable of handling more than 95% of hardware limit, like 950-990 Mbps per port.
Note: Remember that this is real time status captured during ideal environment. These might be different according to traffic load, complexity of configuration, CPU/RAM/SSD specifications. Most important OS, if OS is more stable and have smaller footprint then performance should be high.
