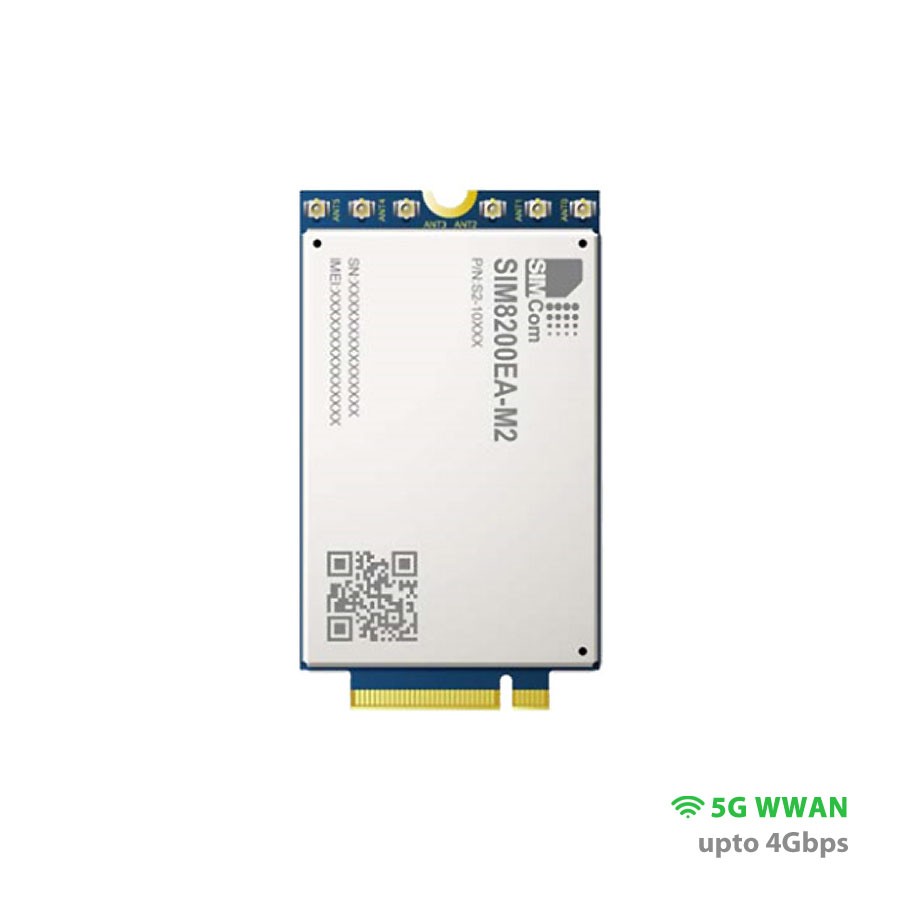

SIMCom SIM8200EA‐M2 upto 4Gbps M.2 Multi‐Band 5G Module

When you need a stable, high-speed data link for IoT devices, industrial machines, or mobile terminals, old LTE modules often become a bottleneck. Slow download rates and limited network bands can cause missed alerts, delayed updates, and lost productivity. The SIMCom SIM8200EA-M2 5G NR Sub-6GHz Module removes that bottleneck by delivering up to 4 Gbps downlink and supporting a wide range of 5G and LTE bands, giving you a clear, fast, and reliable connection wherever you operate.

SIMCom SIM8200EA-M2 5G NR Sub-6GHz Module with SIMCom

This compact M.2 module from SIMCom brings true 5G Sub-6GHz performance to your design. It fits in a 52 x 30 x 2.3 mm slot and works with standard Windows, Linux, and Android drivers. If your project suffers from weak signal or cannot keep up with data-intensive tasks, this module gives you the speed and band coverage you need to stay ahead. The module also includes a built-in file system and supports MBIM and NDIS drivers, making integration with Windows and Linux seamless. With its USB and UART ports you can quickly prototype and then move to a production design.

SIMCOM's latest Multi‐Band 5G NR/LTE‐FDD/LTE‐TDD/HSPA+ module SIM8200EA‐M2 supports R15 5G NSA/SA up to 4.0 Gbps high throughput data communication with strong extension capability and rich interfaces including UART, PCIe, USB3.1, GPIO etc.

Key Features:

• 5G Sub-6GHz downlink up to 4 Gbps, uplink 500 Mbps.
• LTE-FDD support for 20+ bands and LTE-TDD for 7 bands.
• WCDMA compatibility for legacy networks.
• Multiple interfaces: USB, UART, I2C, PCM, and diversity receiver.
• SIM card interface supporting 1.8 V and 2.95 V.
• Full TCP/IP, IPv4/IPv6, HTTP/HTTPS, MQTT, and DNS stack.
• Firmware-over-the-air (FOTA) update capability.
• Android RIL support for Android 6-9 platforms.
• Certification compliance with RoHS, REACH, CE, GCF and more.
• Compact M.2 form factor for easy board integration

Provides much flexibility and ease of integration as well as unique combination of performance, security and flexibility.
