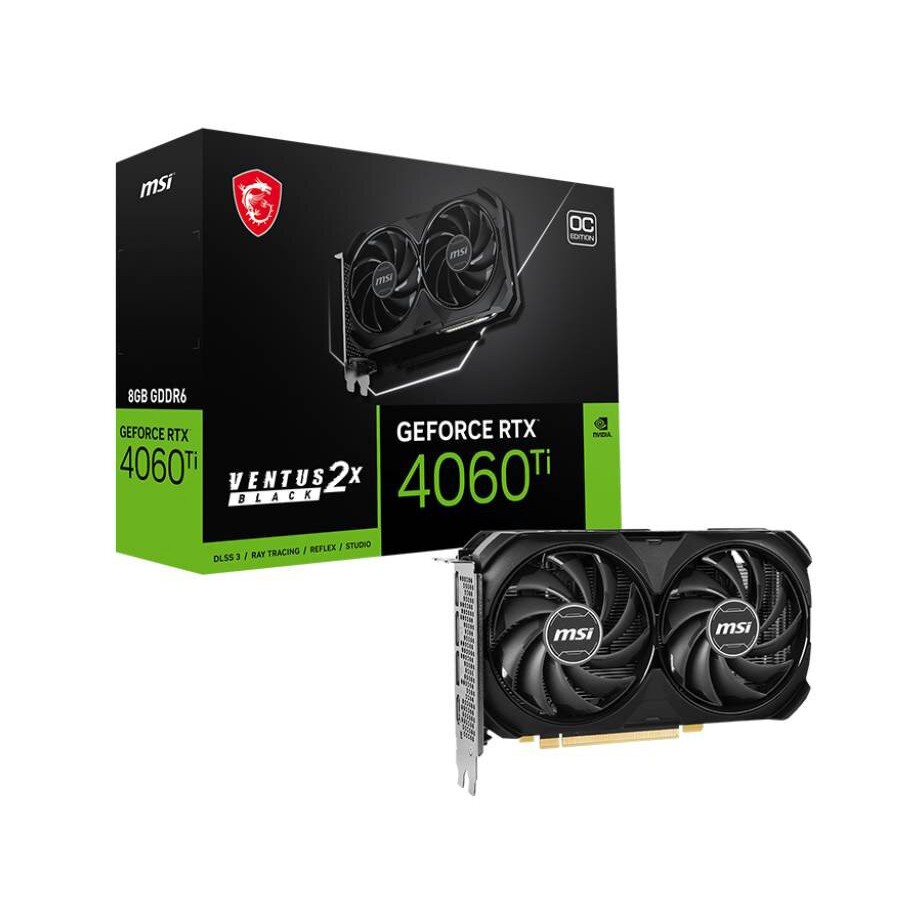

Based on the Ada Lovelace architecture and designed for 1080p gaming, the MSI GeForce RTX 4060 Ti VENTUS 2X BLACK 8G OC graphics card brings the power of real-time ray tracing and AI to your PC. Featuring 8GB GDDR6 memory and 128-bit memory interface, it offers enhanced performance and power efficiency compared to the previous generation.
The card's front panel includes multiple outputs, such as DisplayPort 1.4a and HDMI 2.1a. HDMI 2.1 supports up to 48 Gb/s bandwidth, allowing for higher resolutions and refresh rates, including 8K at 60 fps, 4K at 120 fps, and even up to 10K. Beyond high-resolution gaming, the RTX 4060 Ti's 4352 CUDA cores enable computationally intensive programs to accelerate tasks using CUDA and other APIs.
For cooling, MSI has implemented dual TORX 4.0 fans, which work together to create optimal air pressure. Airflow Control directs air precisely where it's needed for maximum cooling efficiency. Precision-crafted heat pipes ensure maximum contact with the GPU, spreading heat along the entire length of the heat sink. The Zero Frozr feature stops the fans completely at low temperatures, reducing noise for a quieter gaming experience.
Features:
MSI GeForce RTX 4060 Ti comes with 8GB GDDR6 Memory,128-bit and 18Gbps Speed
4352 Cuda Cores
3x DP 1.4 & 1x HDMI 2.1a
NVIDIA Ada-Lovelace Technology
Cooling with dual TORX FAN 4.0
Supports NVIDIA AI acceleration, DLSS3, DLSS2, Raytracing and Reflex as well as NVIDIA encoder, broadcast and studio
Specifications:
|
Product
|
MSI GeForce
RTX™ 4060 Ti VENTUS 2X BLACK 8G OC
|
|
Model Number
|
RTX™ 4060 Ti
VENTUS 2X BLACK 8G OC
|
|
Microarchitecture
|
Ada Lovelace
|
|
Graphics
Processing
|
NVIDIA®
GeForce RTX™ 4060 Ti
|
|
Interface
|
PCI Express®
Gen 4 x16 (uses x8)
|
|
CUDA® Cores
|
4352 Units
|
|
Core Clocks
|
Extreme
Performance: 2580 MHz (MSI Center)
|
|
Boost: 2565
MHz
|
|
Power
Consumption
|
160W
|
|
Memory Speed
|
18 Gbps
18 Gbps
18 Gbps
|
|
Memory Size
|
8GB
|
|
Memory Type
|
GDDR6
|
|
Memory Bus
|
128-bit
128-bit
128 bit
|
|
Output
|
3x
DisplayPort (v1.4a)
|
|
1x HDMI
(Supports 4K@120Hz HDR and 8K@60Hz HDR and Variable Refresh Rate (VRR) as
specified in HDMI™ 2.1a)
|
|
HDCP Support
|
Yes
|
|
Power
consumption
|
160 W
|
|
Power
connectors
|
8-pin x 1
|
|
Recommended
PSU
|
550 W
|
|
Card
Dimension (mm)
|
199 x 120 x
42 mm
199 x 120 x 42 mm
199 x 120 x 42 mm
|
|
Graphics APIs
|
DirectX 12
Ultimate
|
|
OpenGL 4.6
|
|
G-SYNC®
technology
|
Yes
|
|
Maximum
Displays
|
4
|
|
Digital
Maximum Resolution
|
7680 x 4320
|
