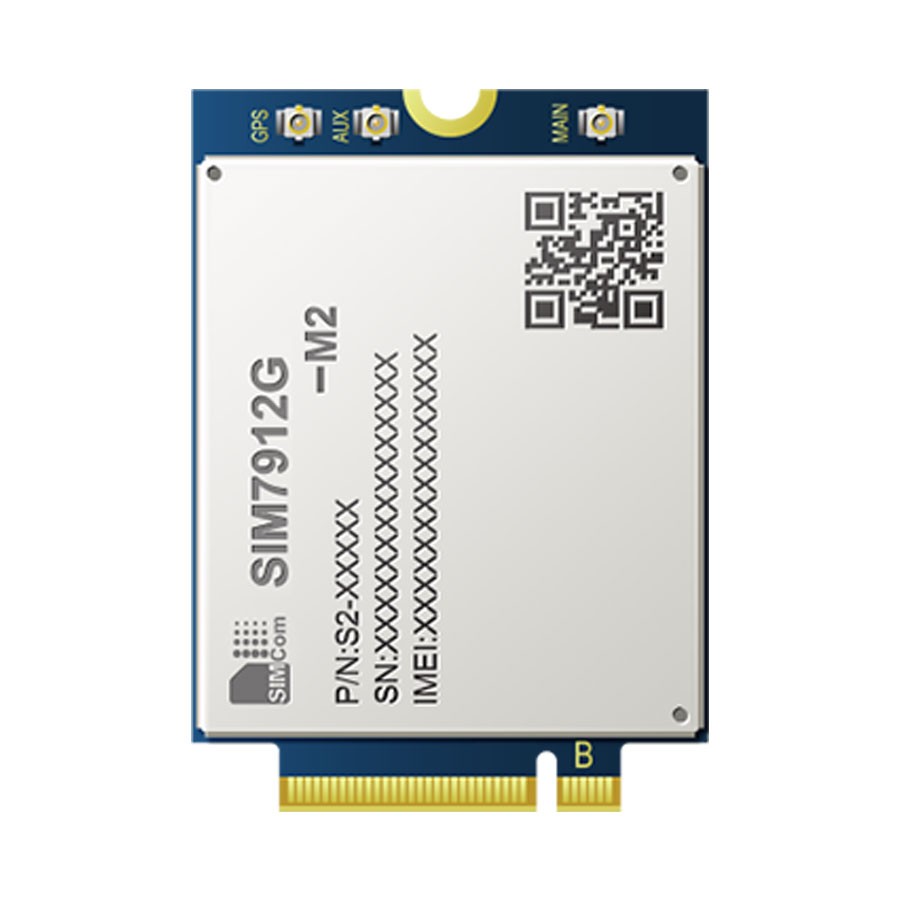

SIMCOM SIM7912G-M2 3042 4G LTE/GNSS CAT-12 600Mbps Global Version WWAN Module
SIMCOM SIM7912G-M2 3042 4G LTE/GNSS CAT-12 600Mbps Global Version WWAN Module-NWEL-040
SIMCOM SIM7912G-M2 3042 4G LTE/GNSS CAT-12 600Mbps Global Version WWAN Module-NWEL-040
SIMCOM SIM7912G-M2 3042 4G LTE/GNSS CAT-12 600Mbps Global Version WWAN Module-NWEL-040

SIMCOM SIM7912G-M2 3042 4G LTE/GNSS CAT-12 600Mbps Global Version WWAN Module

In Stock       UK Free Shipping

PRODUCT CODE: NWEL-040

SIM7912G-M2 is the LTE Cat 12 module which supports wireless communication modes of LTETDD/LTE-FDD/HSPA+. It supports maximum 600Mbps downlink rate and 75Mbps uplink rate. SIM7912G-M2 adopts M.2 form factor. It is easy for customers to integrate.

SIM7912G-M2 integrates multiple satellite high accuracy positioning GNSS systems, with multiple built-in network protocols, supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function, AT commands are compatible with SIM7500/SIM7600/SIM7906 series modules. Meanwhile SIM7912G-M2 integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, GPIO, which is suitable for main IoT applications such
as telematics, surveillance devices, CPE, industrial routers, and remote diagnostics etc.

Features:
M.2 interface with strong compatibility
Suitable for LTE, HSPA+ networks with global coverage
Multi-constellation GNSS receiver support
Abundant software functions: FOTA, SSL, TLS
AT commands of SIM7912G-M2 are compatible with the SIM7500/SIM7600/SIM7906 series modules

Specifications:

Model

SIMCom SIM7912G

Region

Europe

North America

Asia

Australia

Africa

APAC

Form Factor

M.2 3042

Primary Technology

LTE - cat 12

Max DL Speed

600Mbps

Max UL Speed

75Mbps

GNSS

Yes

Chipset

Qualcomm MDM9240

LTE Bands

B1 (FDD 2100)

B2 (FDD 1900)

B3 (FDD 1800)

B4 (FDD 1700 / AWS)

B5 (FDD 850)

B7 (FDD 2600)

B8 (FDD 900)

B12 (FDD 700ac)

B13 (FDD 700c)

B17 (FDD 700bc)

B18 (FDD 800)

B19 (FDD 800)

B20 (FDD 800DD)

B25 (FDD 1900)

B26 (FDD 850)

B28 (FDD 700)

B29 (SDL 700)

B30 (FDD 2300)

B32 (SDL 1500)

B38 (TDD 2600)

B39 (TDD 1900)

B40 (TDD 2300)

B41 (TDD 2500)

B66 (FDD 1700 / AWS-3)

UMTS Bands

B1 (2100)

B2 (1900)

B3 (1800)

B4 (AWS)

B5 (850)

B8 (900)

B19 (800)

Antenna Connectors

IPEX MHF-4

Data Interface

USB 3.0

USB 2.0

MIMO (Multiple-Input Multiple-Output)

Yes

Certification

CE, RED, RoHS, REACH, RCM, Telec, Jate

Driver Support

Windows, Linux & Android

Operating Temperature Range

-30°C ~ 75°C
